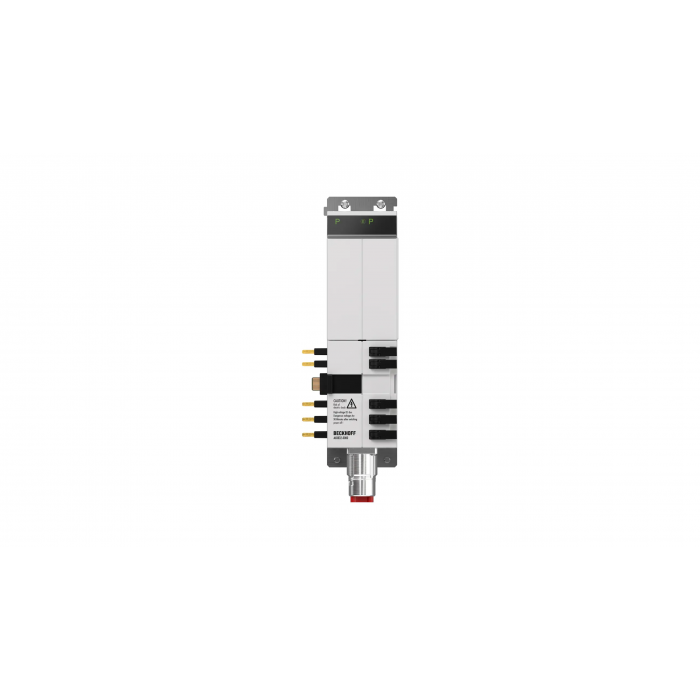

AX8832-0000-0000 coupling module 0…848 V DC
Channels: 2
DC link voltage: 0…848 V DC
DC link output current: 2 x 20 A DC
System bus: EtherCAT
Drive profile: CiA402 according to IEC 61800-7-201 (CoE)
Ambient temperature (operation): 0…+40 °C, up to +55 °C with power reduction (see documentation)
Approvals/markings: CE, cULus, EAC
For connecting AMP8000 distributed Servo Drives to the PC-based control technology, and more specifically to the EtherCAT-based Servo Drive systems there are two coupling modules available in single-channel and dual-channel versions
| SKU | AX8832-0000-0000 |
|---|
