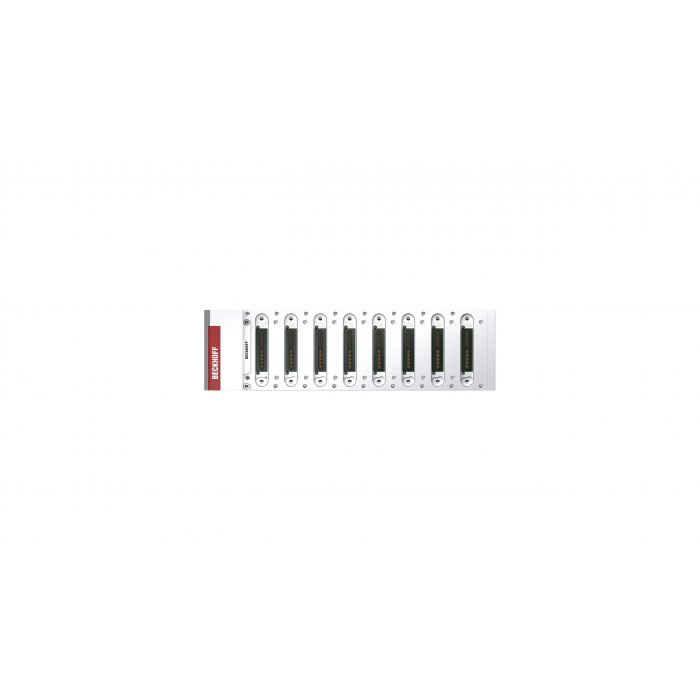

Baseplate, 1-row, 8 data slots
The MB1008-0000-0000 baseplate has 8 data slots. The first slot is intended for the EtherCAT connection. This slot can only be used by an IPC or coupler module. The further 7 slots can be occupied with 1-row I/O or system modules. The baseplate has 3 connection points for the potential equalization.
The integrated housekeeping acquires data on temperature, shock, vibration, air pressure and humidity and enables dew point monitoring, among other things. Performance+ additionally offer Bluetooth diagnostics.
Product category: baseplates
Category/version: 1-row
Communication: EtherCAT
Data slots: 8
Connection points potential equalization: 3
Housekeeping: Performance+
Diagnostics: yes
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 410 mm x 144 mm x 35 mm
Number of rows: 1
Weight: 1500 g
Material: aluminum
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
| SKU | MB1008-0000-0000 |
|---|
