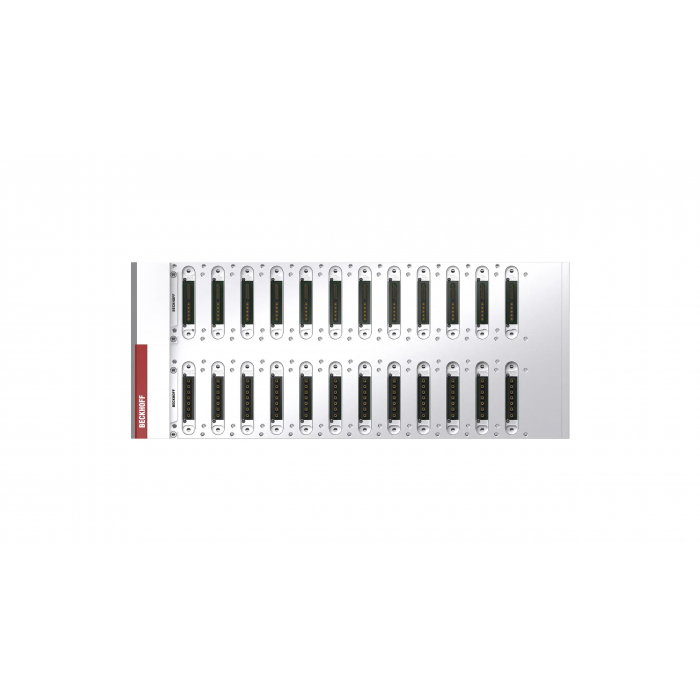

Baseplate MB2012-0000-0000
The MB2012-0000-0000 baseplate has 12 combined data and power slots. The first slot is intended for the EtherCAT connection. This slot can only be used by an IPC or coupler module. The further slots can be occupied with any 1- or 2-row modules. The baseplate has 6 connection points for the potential equalization.
The integrated housekeeping acquires data on temperature, shock, vibration, air pressure and humidity and enables dew point monitoring, among other things. Performance+ additionally offer Bluetooth diagnostics.
Product category: baseplates
Category/version: 2-row
Communication: EtherCAT
Combined data/power slots: 12
Connection points potential equalization: 6
Housekeeping: Performance+
Diagnostics: yes
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 570 mm x 274 mm x 35 mm
Number of rows: 2
Weight: 4500 g
Material: aluminum
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
| SKU | MB2012-0000-0000 |
|---|
