BASIC+2ND RELAY O/P (48x96) (OUTPUT: RELAY)

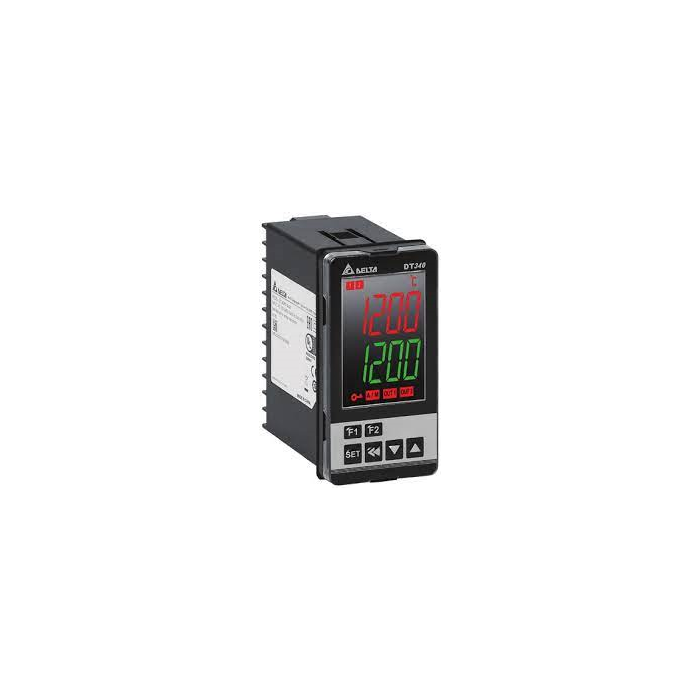

DT3 series - Advanced high speed intelligent temperature controller:
- New DT3 series temperature controller designed with upgraded hardware and higher specifications.
- To offer smart operation, fast response and simple expendability and user-defined function keys.
Various built-in sensor input modes:
- Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK.
- Platinum RTD: Pt100, JPt100, RTD: Cu50, Ni120.
- Analog input: 0 - 5 V, 0 - 10 V, 0 - 20 mA, 4 - 20 mA, 0 - 50 Mv.
- Various Control Modes: Auto Tuning, FUZZY, Manual, ON/OFF.
- PID Process Control, Self-Tuning.
- Various Output Modes: Relay, Voltage pulse, Current DC, Linear voltage.
- Communication: RS-485 communication MODBUS ASCII / RTU protocol.
- Display: Large 3-colour LCD Display.
- IP protection: IP66 protection level and CE, UL certified.
- Output: Dual output control function for heating and cooling.
- Detection: Heater disconnection detection.
- Sampling rate: 100ms.
- Supply voltage: 100 - 240 VAC.
| Brand | Delta |
|---|
