BASIC+2ND VOLTAGE O/P+RETRANSMIT (48X48) (OUTPUT: RELAY)

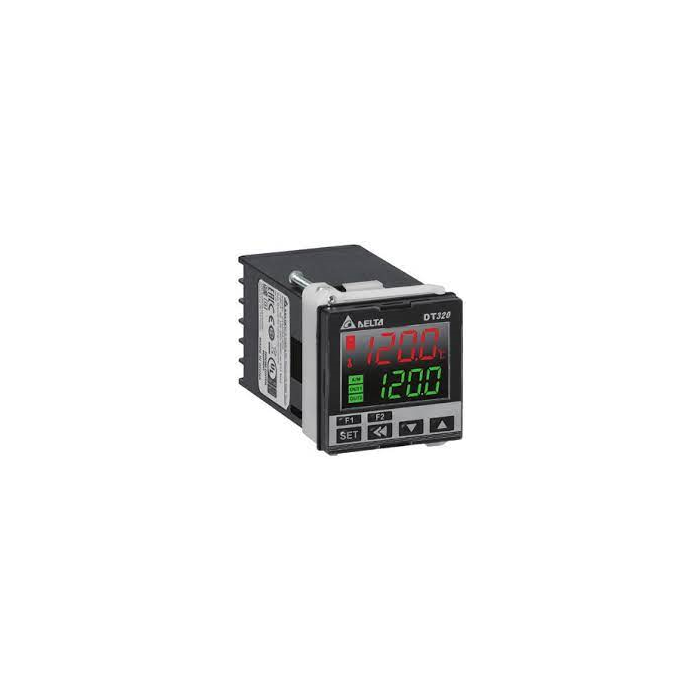

DT3 series - Advanced high speed intelligent temperature controller:
- New DT3 series temperature controller designed with upgraded hardware and higher specifications.
- To offer smart operation, fast response and simple expendability and user-defined function keys.
Various built-in sensor input modes:
- Different internal sensor input modes K, J, T, E, N, R, S, B, L, U, and TXK thermocouples.
- Platinum RTD: Ni120, Cu50, JPt100, Pt100.
- A variety of control modes are available, including ON/OFF, FUZZY, Manual, Auto Tuning, PID Process Control, and Self Tuning.
- Analog input ranges from 0 to 5 V to 10 V, 0 to 20 mA, and 4 to 20 mA.
- Multiple Output Modes: DC current, voltage pulse, relay, and linear voltage.
- IP protection: IP66 protection level and CE, UL certified.
- Output: Dual output control function for heating and cooling.
- Detection: Heater disconnection detection.
- Sampling rate: 100ms.
- Supply voltage: 100 - 240 VAC.
- Communication: RS-485 communication MODBUS ASCII / RTU protocol.
- Display: Large 3-color LCD Display.
| Brand | Delta |
|---|
