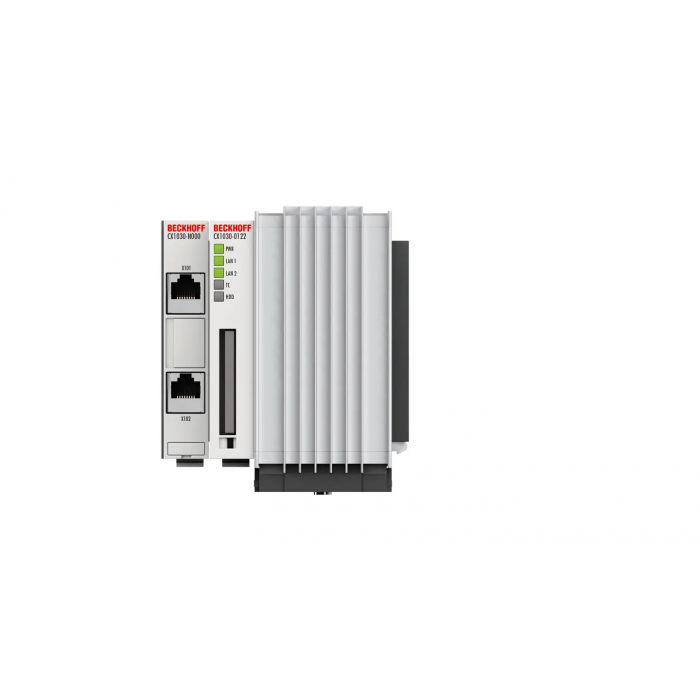

Basic CPU module CX1030-0020

Processor: Intel® Pentium® M, 1.8 GHz clock frequency Number of cores: 1 Flash memory: slot for Compact Flash card, 128 MB included (expandable) Main memory: 256 MB DDR RAM (expandable ex factory to 1 GB) Interfaces: 2 x RJ45 10/100 Mbit/s (internal switch) Cooling: cooling module + fan cartridge featuring speed control with double ball bearing fans, easily replaceable Diagnostics LED: 1 x power, 2 x LAN link/activity, TC status, 1 x flash access Expansion slot: 1 x Compact Flash type I+II insert with eject mechanism Clock: internal battery-backed clock for time and date (battery exchangeable) Operating system: Windows Embedded CE 6, Windows Embedded Standard 2009 Control software: TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime System bus: 16 bit ISA (PC/104) I/O connection: via power supply module (E-bus, K-bus, K-bus/IP-Link) Power supply: via system bus (through CX1100-0012 [K-bus], CX1100-0013 [K-bus, IP-Link], CX1100-014 [E-bus] power supply module) Max. power consumption: 32 W Dimensions (W x H x D): 96 mm x 112 mm x 99 mm Weight: approx. 580 g Operating/storage temperature: 0…+50 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE, UL
