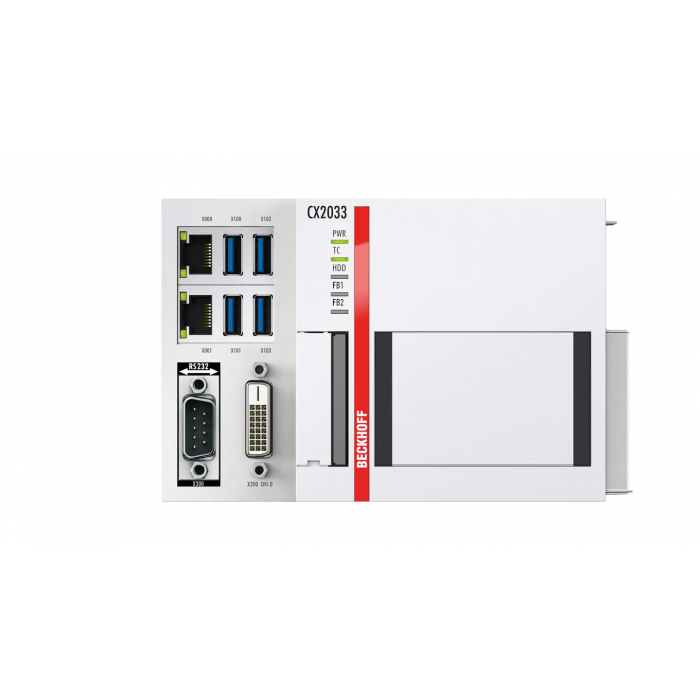

Basic CPU module: CX2033-0195

Processor: AMD Ryzen™ V1202B 2.3 GHz Number of cores: 2 Flash memory: slot for CFast card Main memory: 8 GB DDR4 RAM (expandable ex factory to 16 GB) Persistent memory: 128 kB NOVRAM integrated Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.0, 1 x optional interface Cooling: passive cooling, optionally with active cooling ex factory Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock: internal battery-backed clock for time and date (battery exchangeable) Operating system: Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD Control software: TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection: via power supply module (E-bus or K-bus, automatic recognition) Power supply: 24 V DC (-15 %/+20 %) Max. power consumption: 42 W Dimensions (W x H x D): 144 mm x 99 mm x 91 mm Weight: approx. 1165 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE, UL TwinCAT 3 platform level: Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level
