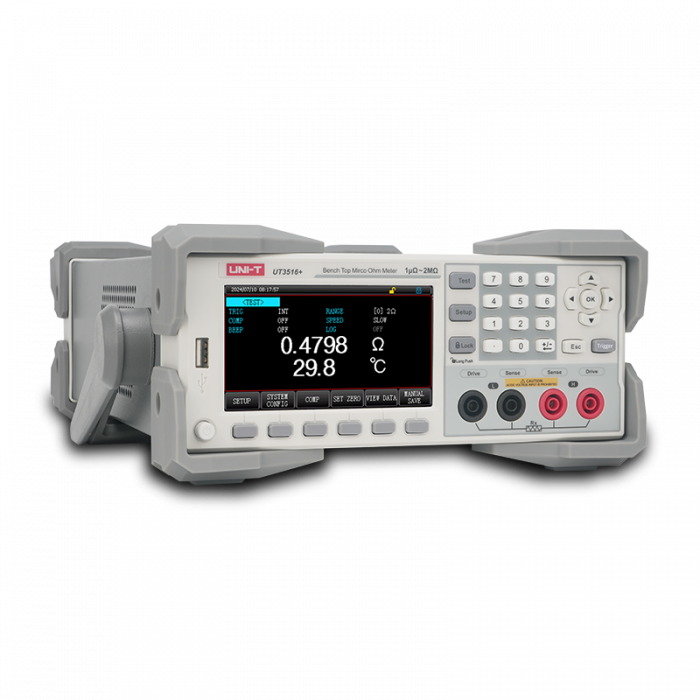

Battery Tester, UT3516+: Micro Ohm Meter (2MΩ, accuracy: 0.05%)
UT3510+ Series, Battery Tester:
- TFT LCD display, 4.3 inches.
- Accuracy of 0.05%.
- The minimum resolution is 1 μ Ω, with a data display of 4½ digits.
- Range of measurement for UT3513+: 1 μ Ω to 20 k Ω.
- Range of measurement for UT3516+: 1 μ Ω to 2 M Ω.
- R, LPR, and T multiple test functions combined.
- Test mode for low voltage (LRP).
- Function for temperature compensation (TC).
- Function of temperature conversion (▲ t).
- With U drive data storage and screenshot-saving capabilities.
- Sorting and beeping functions of comparators.
- Facilitate the saving and viewing of data.
- 10 ms/time is the maximum test speed.
- The temperature correction interface is built in.
Specifications:
- UT3510+ Series, Battery Tester.
- Resistance range 1μ - 2 MΩ.
- Resolution 1μΩ/10μΩ/100μΩ/1mΩ/10mΩ/100mΩ/1Ω/10Ω/100Ω.
- Test current 1A/1A/100mA/10mA/1mA/1mA/100μA/10μA/1Μa.
- Open-circuit Voltage on Test End "<1V/<1V/<1V/<2.7V/<2.7V/<2.7V/<2.7V/<2.7V/<2.7V, LPR mode:<40mV".
- Test mode R, T, R-T, LPR, LPR-T.
- Basic accuracy 0.05%.
- Reading resolution 4½.
- Range mode Auto/manual/nominal.
- Test speed High speed 10 ms/time, fast speed 17 ms/time, medium speed 56 ms/time, slow speed 334 ms/time.
- Calibration Short-circuit full range zeroing.
- Power AC 100-240V, 50/60Hz.
- Display 4.3 inches LCD.
- Product size (W×H×D) 215mm x 88mm x 348.5mm.
| SKU | UT3516-Plus |
|---|---|
| Brand | UNI-T |
