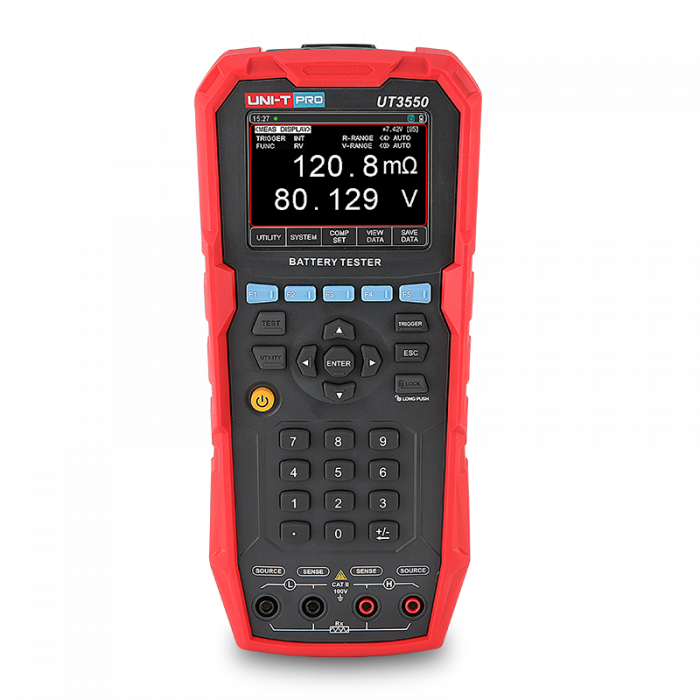

Battery Tester, UT3550: Battery Testers (100V, 30Ω)
UT3550 Series, Battery Tester:
- High precision: 0.5% resistance and 0.05% voltage.
- The measurement range for internal resistance is 0.001 m Ω to 30.00 Ω.
- Range of voltage measurement: 0.0001V to 100.00V.
- Resolution: 0.1 mV (voltage) and 0.001 m Ω (resistance).
- Comparative modes: ABS, PER, and SE0.
- The new AC internal resistance test method measures practically all battery types.
- 3.5-inch primary LCD screen.
- The auxiliary display screen is 0.96 inches.
- UPS is immediately measurable online.
- USB data storage and the ability to save screenshots.
- 2000mAh lithium battery power source.
- To enable remote control, provide a type C interface.
- Support the SCPI protocol.
- IP65 protection rating.
Specifications:
- UT3550 Series, Battery Tester.
- Voltage range 10V,100V.
- Voltage resolution 100μV,1mV.
- Voltage accuracy ±0.05%rdg ±5dgt.
- Resistance range 3mΩ,30mΩ,300mΩ,3Ω,30Ω.
- Resistance resolution 1μΩ,10μΩ,100μΩ,1mΩ,10mΩ.
- Resistance accuracy ±0.5%rdg ±5dgt.
- Range Mode Auto and Manual (resistance and voltage).
- Calibration Short circuit full range to zeroed.
- Testing Speed 1/s (manual range).
- Power AC 100-240V, 50/60Hz.
- Display 3.5-inch LCD display +0.96 inch OLED on the top.
- Product size (W×H×D) 114.5mm×251.9mm×85.3mm.
| SKU | UT3550 |
|---|---|
| Brand | UNI-T |
