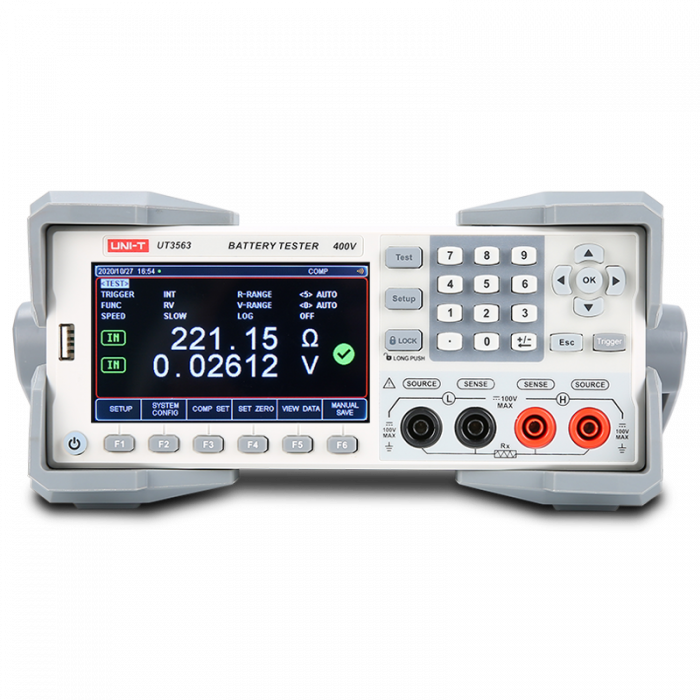

Battery Tester, UT3563: Battery Testers (400V, 3.2kΩ)
UT3560 Series, Battery Tester:
- AC resistance reading: 31,000 counts; DC voltage reading: 606,000 counts.
- Resistance: 3.2kΩ-0.0001mΩ.
- DC voltage range: 0.00001V to 400.000V.
- Both automatic and manual range switching are available.
- 0.5% resistance accuracy and 0.01% high-precision voltage accuracy.
- Handler interfaces include RS-232, USB, SCPI, and Modbus protocols.
- Using the recording and statistics routines, up to 10,000 sets of data can be calculated.
- 4.3-inch LCD screen with a huge screen.
Specifications:
- UT3560 Series, Battery Tester.
- Voltage range 6V/60V/100V/400V.
- Resolution Resistance: 0.1μΩ, Voltage: 10Μv.
- Speed Slow/Medium/Rapid/High-speed.
- Resistance range 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3kΩ.
- Temperature coefficient Voltage: (±0.001%rdg. ±0.3dgt)/°C; Resistance: (±0.05%rdg. ±0.5dgt)/°C.
- Basic accuracy Resistance: 0.5%, Voltage: 0.01%.
- Range mode Auto and manual (resistance and voltage).
- Power AC 100-240V,50/60Hz.
- Display 4.3-inch LCD.
- Product size (W×H×D) 340mm x 214mm x 89mm.
| SKU | UT3563 |
|---|---|
| Brand | UNI-T |
