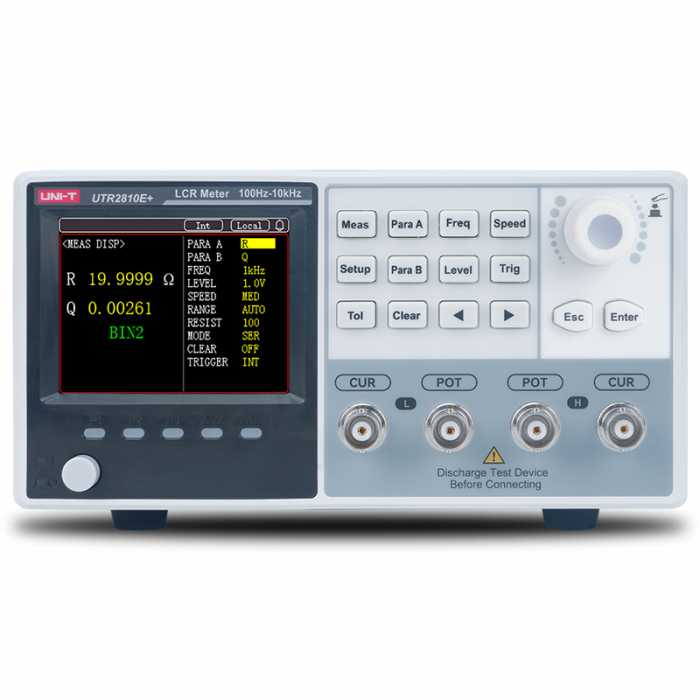

Benchtop LCR Meters, UTR2811E+: (10kHz, 0.1%)
UTR2810+ Series Benchtop LCR Meters:
- Frequency of test: 100, 120, 1K, and 10k Hz.
- 0.1% basic accuracy.
- Level of testing: 0.1/0.3/1 V rms.
- Measurement parameters include C, L, Z, R, X, G, B, Y, Q, D, and θ.
- The output impedances are 30 Ω and 100 Ω.
- Comparator: BIN1/BIN2/BIN3/NG, four gears.
- Quick test (30 ms/time).
- All measuring parameters and results are easily readable on the 2.8-inch TFT LCD display.
- RS232 communication, which adheres to the common SCPI protocol.
Specifications:
- UTR2810+ Series, Benchtop LCR Meters.
- Test frequency range 100Hz,120Hz,1kHz,10kHz.
- Test frequency Minimum resolution Four-digit display.
- Test frequency Accuracy 0.02%.
- AC level Voltage range 0.1V,0.3V,1V.
- AC level Accuracy ±10%×Set value.
- Internal resistance of AC source Resistance 30Ω / 100Ω Optional.
- Internal resistance of AC source Output impedance accuracy ±5%.
- Power AC 110V/220V 50/60Hz.
- Display 2.8" TFT LCD 240×320.
- Product size (W×H×D) 174 mm× 88 mm× 267 mm.
- Product net weight 2.15kg.
| SKU | UTR2811E-Plus |
|---|---|
| Brand | UNI-T |
