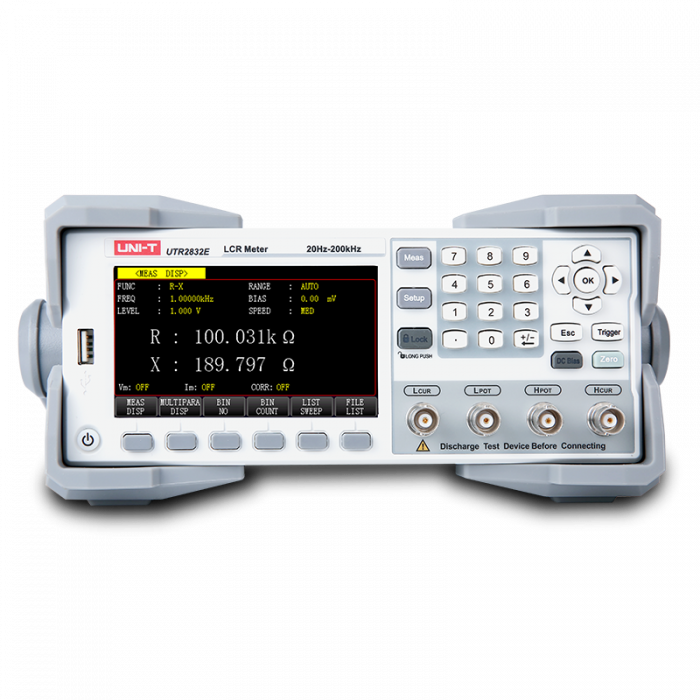

Benchtop LCR Meters, UTR2832E: (200kHz, 0.05%)
UTR2830 Series, Benchtop LCR Meters:
- 4.3-inch TFT-LCD screen with easy-to-use panel controls.
- Test range: 20 Hz to 300 kHz.
- 0.05% basic accuracy.
- Test speed is 12.5 m/s.
- Optional internal resistances are 30Ω, 50Ω, and 100Ω.
- 10-level PASS/FAIL display, counting, and sorting.
- Switch for soft power.
- SCPI protocol-supporting rich interfaces.
Specifications:
- UTR2830 Series, Benchtop LCR Meters.
- Test frequency range 20Hz-200kHz.
- Test frequency Minimum resolution 100mHz.
- Test frequency Accuracy ±0.02%.
- AC level Voltage range 10mVrms—2Vrms.
- AC level Accuracy ±10%×Set value+2Mv.
- Test speed (mS / time) Fast: 12.5ms; Medium speed: 83 ms; Slow speed: 167 ms.
- Interface RS232, HANDLER, USB HOST, USB DEVICE, LAN.
- Power AC 110V/220V 43-63Hz.
- Display 4.3" TFT LCD 480×272.
- Product size (W×H×D) 215mm×88mm×350mm.
- Product net weight 4.65kg.
| SKU | UTR2832E |
|---|---|
| Brand | UNI-T |
