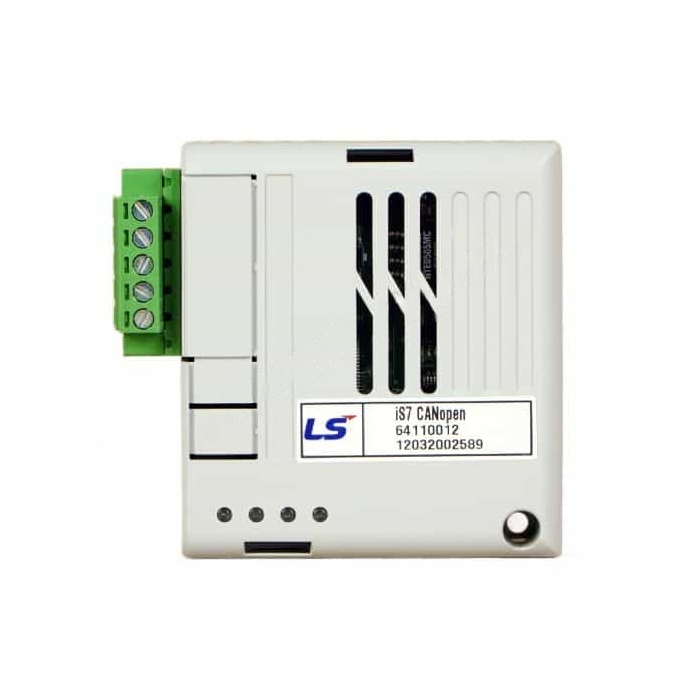

CanOpen Communication Card Bus Topology
Description:
- The CIA (Controller Area Network) Association's CAN (Controller Area Network) is used by the Fieldbus CAN Open.
- At the moment, machine control, medical equipment, automobiles, and building automation all use the CAN open.
- Any master module or PLC sequence program can monitor and control inverters.
- One communication line can connect multiple inverters, which reduces installation costs.
- Faster and easier installation and maintenance are made possible by simple, clean wiring.
- Inverters can be controlled by a range of PLC peripheral devices.
- PCs and other systems can be connected to automate plants.
Specifications:
- 1Mbps communication speed.
- Bus Topology.
- Max. 64 node connection points (include master).
- PDO SDO Sync NMC communication support.
- Support profile: PDO1 (CiA402 drive & motion control device profile) PDO3 (LS Profile).
- Device Type: AC Drive.
- Terminal Resistance: 120 ohm 1/2W Lead Type.
iS7 Series:
- With its improved V/F control, V/F PG slip compensation, and sensor-less vector control, the iS7 produces more potent performance.
- Focusing on an intuitive user interface and environmentally friendly features, the iS7 has a broad graphic LCD keypad with support for both user and macro groups, as well as an electro-thermal function for motor protection and input/output phase loss protection.
- A speed-precision-driven vector algorithm and a competitive and powerful low-speed torque control are features of iS7 technology.
- 100:1 speed control range.
- Very low torque control capability: actual torque of 150% at 0.1 Hz.
- Maximum torque control capacity inside the range of restoration.
| SKU | SV-IS7-Can Open |
|---|---|
| Brand | LS Electric |
