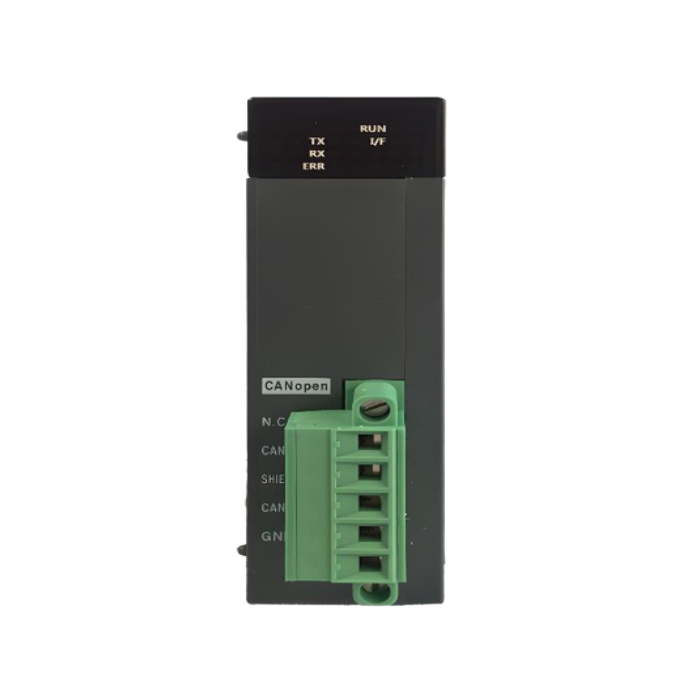

CANopen Slave I/F Communication Module, 202mA
Description:
- The CANopen network, an open network based on the CANopen (CiA's DS301) standard, is utilized in industrial control equipment.
- There are up to 32 slave connections available, support for up to 1 Mbps of transmission speed, several diagnostic tools, and network status information.
Specifications:
- Baud Rates (kbps): 10,20,50,100,125,250,500,800,1000 kbps.
- Number of Communication Ports: 1.
- Number of Maximum Connection Nodes: N/A.
- Number of Supported PDOs:
- TPDO: 64.
- RPDO: 64.
- Maximum Data Length per a PDO: 8 Bytes.
- Transmission Type of PDOs: Synchronous acyclic (0), synchronous cyclic (1-240), RTR (252-253), time event trigger (254-255).
- Supported SDO1: Server 1.
- Transmission Type of SDOs: Expedited, Normal.
- Communication Zone Excess Method: CSMA/BA (Carrier Sense Multiple Access / Bitwise Arbitration).
- Topology: BUS.
- SYNC Service: Consumer.
- NMT Node Control: NMT Slave.
- NMT Error Control: Heartbeat.
- Network Scan: N/A.
- Dimensions:
- Height: 90mm.
- Width: 27mm.
- Depth: 60mm.
- Weight: 78g.
- Consumption Current (mA): 202.
| Brand | LS Electric |
|---|
