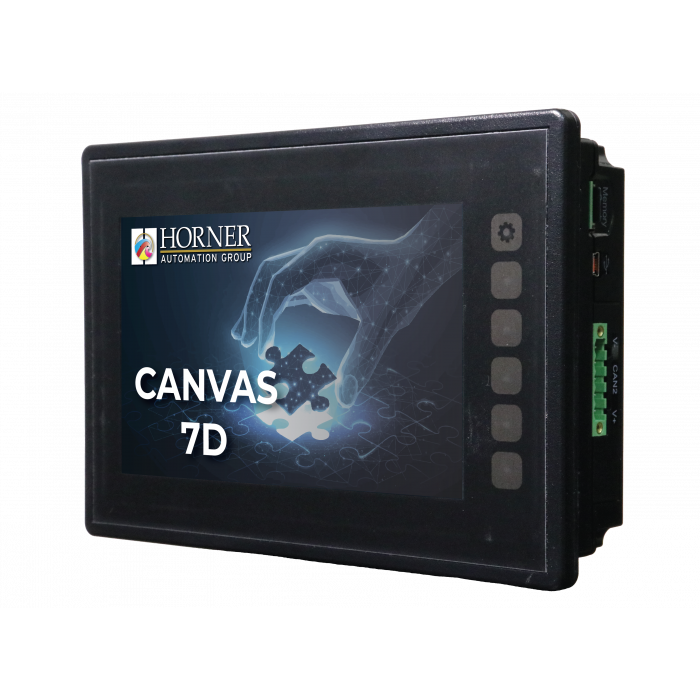

Canvas 7D Controller 7", 12 DC In, 12 DC Out, 2 Analog In, (mA/V), dual Ethernet and dual CAN

ZAR 700,848.40
Out of stock
SKU
HE-CV-070D-03

Description:

  • Created with a brand-new graphics engine and improved graphics from Cscape 10.
  • Dedicated logic and graphics cores in a multi-core SOM.
  • Physical function keys and a 7" WVGA (800x480) display.
  • Up to 42 I/O points on board with 6 I/O configurations.
  • Two MB of logic memory, three serial ports, two CAN ports, and two Ethernet connections.
  • Like the XL7 Prime cutout, DIN-rail mountable.
  • Mini-USB with compatibility for Micro SD and USB A for programming.
  • Enhanced WebMI features, support for MQTT, and online programming.
  • WebMI+, MQTT, Enhanced IEC, and J1939 functionalities come standard on all Canvas variants.

Among the networking features are:

  • Two Ethernet ports (10/100 integrated).
  • (2) Integrated CAN ports that can concurrently support J1939, DeviceNet Scanner, CANopen, and CsCAN.

Specifications:

  • Display: 7” WVGA (800×480) colour touchscreen.
  • I/O Points: Up to 42 onboard.
  • Connectivity: Dual Ethernet, 3 serial ports, dual CAN ports.
  • Memory: 2MB logic memory.
  • Data Storage: USB-A or Micro SD.
  • Programming Support: Online Programming, MQTT support, WebMI features.
  • Networking Features: Built-in 10/100 Ethernet ports, Integrated CAN ports (supports CsCAN, CANopen, J1939, DeviceNet).
  • Operating Temperature: -10°C to +60°C.
  • Storage Temperature: -20°C to +60°C.
  • Power Requirements: 10 - 30VDC, Maximum Current 1100mA.
  • Relative Humidity: 5 to 95%, non-condensing.
  • Weight: 721.2 grams (0.721 kg).
More Information
Brand Horner
