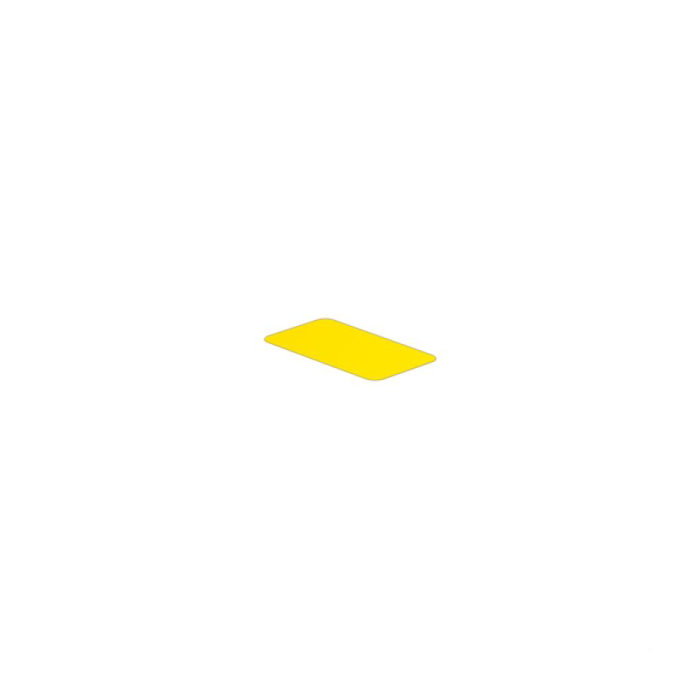

CC 15/27 MM GE
CC 15/27 MM GE:
- The standard includes: CC.
- Our methodically matched product range comprises labels for identifying standardized components, as well as all-purpose and familiar designs like the CC 85/54 nameplate marker.
Your advantages with multi-Mark:
- "Different materials for different needs."
- works with a wide range of manufacturers' equipment.
- Device markings in a familiar style.
Specifications dimensions and weights:
- Depth: 0.1 mm.
- Depth (inches): 0.004 inch.
- Height: 15 mm.
- Height (inches): 0.591 inch.
- Width: 27 mm.
- Width (inches): 1.063 inch.
- Net weight: 0.149 g.
Temperatures:
- Operating temperature range: - 40 - 120 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Adhesive: Acrylate adhesive.
- Approval acc. to UL 969: Yes.
- Colour: yellow.
- compatible printer: THM MULTIMARK, THM MULTIMARK PLUS.
- Halogen: No.
- Material: Polyester.
- Number per roll: 450.
- Operating temperature range: - 40 - 120 °C.
- Operating temperature range, max.: 120 °C.
- Operating temperature range, min.: - 40 °C.
- UL 94 flammability rating: V - 0.
- Version: Self – adhesive, halogen - free.
- Width: 27 mm.
Device markers:
- Halogen: No.
| Brand | Weidmuller |
|---|
