CC-H 15/17

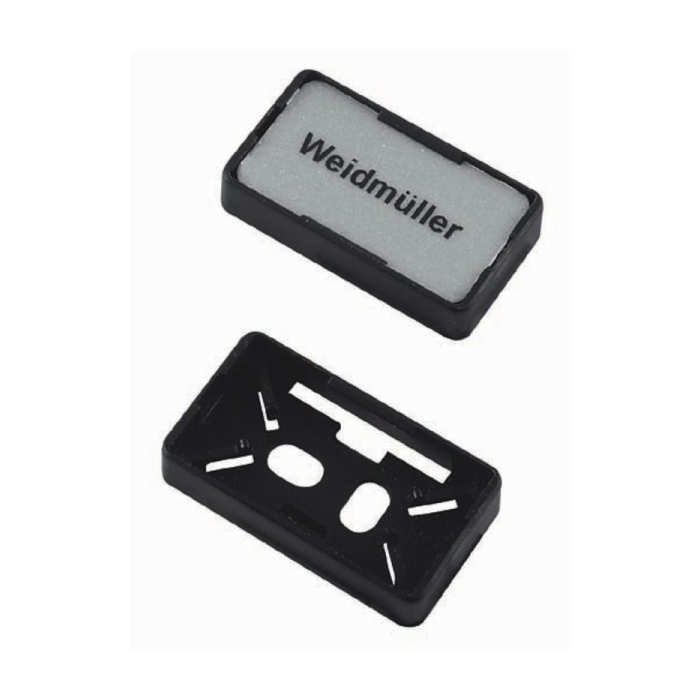

CC – Clip Card Multi-Card:
- Substitute for device marks that are engraved.
- Excellent printing outcomes at a reasonable price.
- Comparable to engraved device markers, the multipurpose Clip Card has a crisply printed
- Labelling space and is available in multiple sizes.
- It uses all of the attachment options and is the best option for designating electrical installations and switching facilities when mounted at eye level.
- With the Clip Card range, you can reliably and economically meet all marking requirements, from basic device identification to labelling pipework, valves, motors, or lamps in compliance with DIN V VDE V 0108 (part 100) or generating nameplates with a colour company logo.
What a Clip Card can do for you:
- Cost-effective: extremely durable labelling with fine engraving.
- All attachment types are in one format, making installation simple.
- Comprehensive: a broad range of uses made possible by the diversity of sizes and design possibilities.
Specifications:
- Version: Clip Card, accessories.
- Quantity: 75.
- Depth: 5.5 mm.
- Height: 15 mm.
- Width: 17 mm.
- Operating temperature range: -40...100 °C.
- Colour: black.
- No Halogen.
- Material: Polyamide 66.
- Number of markers per combination: 1 multi-Card = accessories.
- UL 94 flammability rating: V-2.
| Brand | Weidmuller |
|---|
