External Baying Kit, CCE, 57x57x20mm, Zinc Plated, Mild Steel
Pricing available on request
Description:

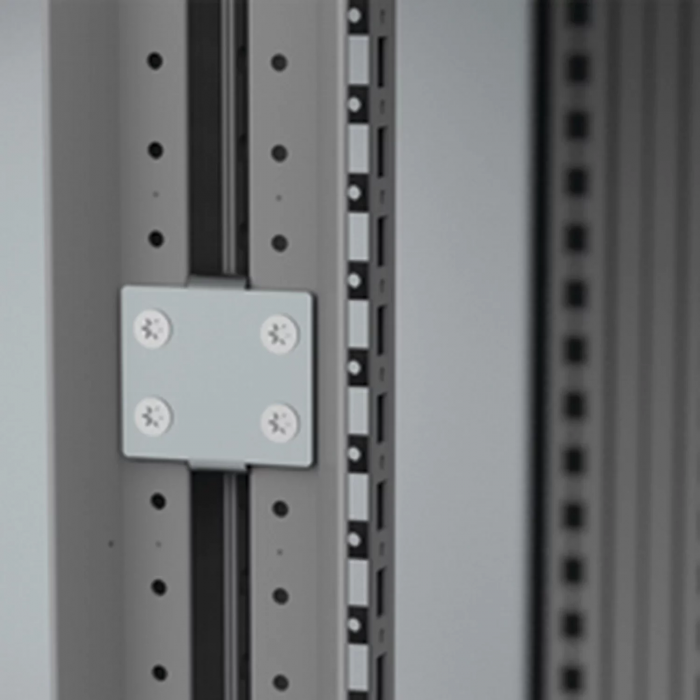

- The purpose of the nVent Hoffman External Baying Kit, CCE06, is to make enclosure baying safe, effective, and space-efficient without requiring inside space.
- Mild steel construction and a zinc-plated finish provide these brackets longevity and corrosion resistance.
- Combinable floor-standing enclosures can be bade side to side with this kit, guaranteeing structural integrity and correct alignment.
- This baying kit offers a direct earthing connection between the enclosure frames, making it perfect for applications where internal space preservation is essential.
Specifications:
- Part Number: CCE06.
- Material: Mild Steel.
- Finish: Zinc Plated.
- Colour: Unpainted.
- Dimensions:
- Height: 57 mm (2.24 in).
- Width: 57 mm (2.24 in).
- Depth: 20 mm (0.79 in).
- Thickness: 3 mm.
- Suitable For Use With: IEC Enclosure.
- Package Quantity: 6 brackets with mounting accessories.
- Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
- Comments: The rear panel and door should be removed before mounting; not to be used in combination with small partial doors.
| Brand | nVent HOFFMAN |
|---|
