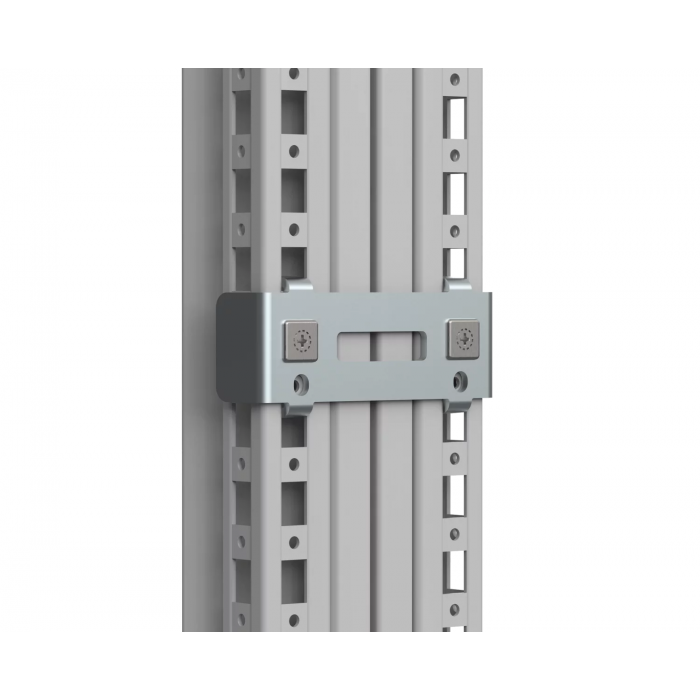

Internal Baying Brackets, CCI, 46x101x22mm, Zinc Plated, Mild Steel
Pricing available on request
Description:
- Without the need for tools, the Vent Hoffman Internal Baying Brackets, CCI06, are made to make enclosure baying quick and secure.
- Mild steel construction and a zinc-plated finish provide these brackets longevity and corrosion resistance.
- The brackets are made to ensure that the enclosure assembly is rigidly reinforced and that the enclosures are spaced correctly.
- Combinable floor-standing enclosures can be bade side to side thanks to their interior mounting on the profiles.
- These brackets don't need removing the door or rear panel during installation, making them perfect for applications where tool-free assembly is desired.
Specifications:
- Part Number: CCI06.
- Material: Mild Steel.
- Finish: Zinc Plated.
- Colour: Unpainted.
- Dimensions:
- Height: 46 mm (1.8 in).
- Width: 101 mm (3.98 in).
- Depth: 22 mm (0.87 in).
- Thickness: 11 gauge.
- Suitable For Use With: IEC Enclosure.
- Package Quantity: 6 brackets with mounting accessories.
- Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
- Comments: Not to be used in combination with a separation plate or mounting plate if mounted on the side of the enclosure; use external baying kit (CCE) in such cases.
| Brand | nVent HOFFMAN |
|---|
