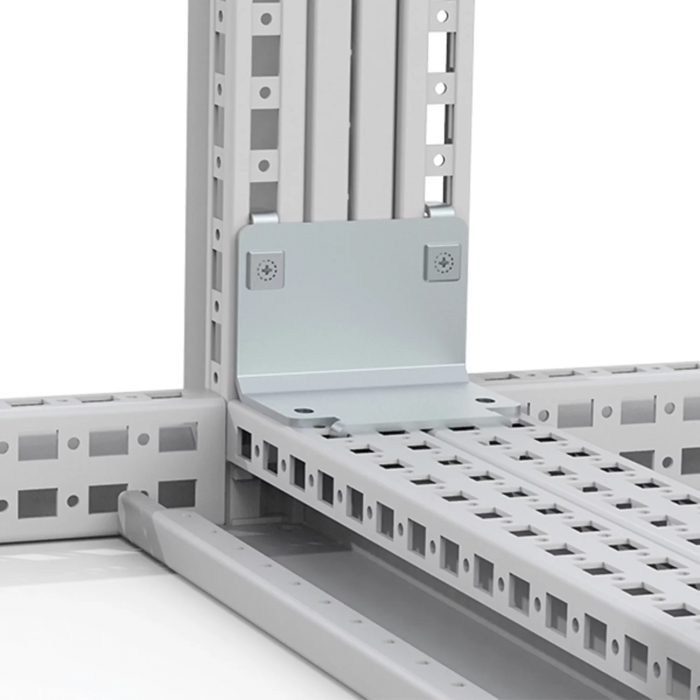

Internal Corner Baying Kit, CCM, 74x85x79mm, Zinc Plated, Mild Steel
Pricing available on request
Description:
- For electrical enclosures that need to be lifted and are fully equipped, the Vent Hoffman Internal Corner Baying Kit, CCM04, is made to offer additional support and safe baying.
- Because 3 mm mild steel has been zinc-plated, these brackets are long-lasting and corrosion-resistant.
- Combinable floor-standing enclosures may be bade side to side with this kit, which also saves a ton of installation time because the door and back panel don't need to be removed.
- For applications where durable and dependable baying is crucial, this baying kit is perfect.
Specifications:
- Part Number: CCM04.
- Material: Mild Steel.
- Finish: Zinc Plated.
- Colour: Unpainted.
- Dimensions:
- Height: 74 mm (2.91 in).
- Width: 85 mm (3.35 in).
- Depth: 79 mm (3.11 in).
- Thickness: 3 mm.
- Suitable For Use With: IEC Enclosure.
- Package Quantity: 4 brackets with mounting accessories.
- Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
- Comments: Not to be used in combination with a mounting plate if mounted on the side of the enclosure, or in combination with the mounting plate filler (MPF) unless the mounting plates are brought 50 mm forward.
| Brand | nVent HOFFMAN |
|---|
