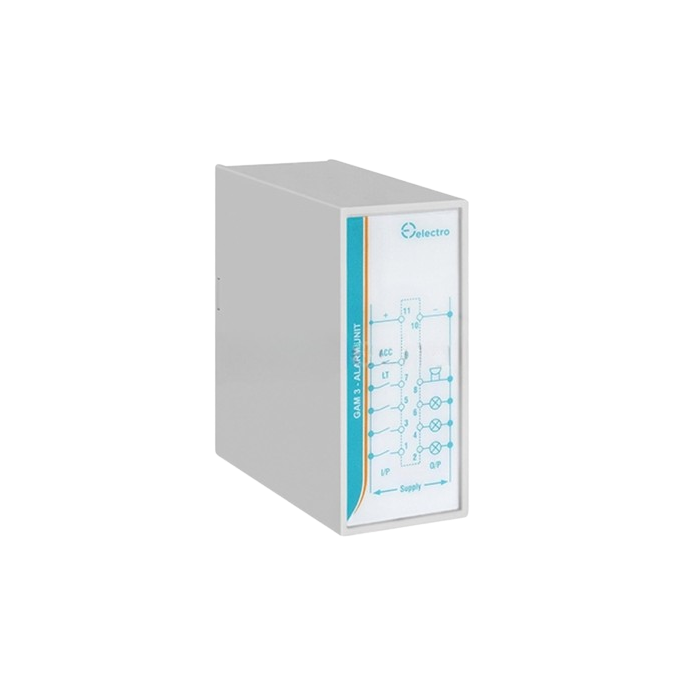

CIRCUIT ALARM MODULE 12VDC
Module for Alarm:
- Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
- Alarm module for basic annunciator panels that manages alarm signals and produces the proper output.
- By connecting all the modules' common terminals, the system can be enlarged.
- Prior to being accepted, the flashing alarm outputs are started by a flasher unit (R1F).
Features:
- Extension of Flasher Input.
- Output 10A SPDT alarm accept facility for hooters.
- Standard 1 amp testing equipment.
- Three alarm inputs that are typically open.
- Three alarm outputs that are typically open.
Specifications:
- DESCRIPTION: Control alarm signals.
- CONTACT: 4 x 5A SPDT.
- ALARM INPUTS: 3 N/O (positive common).
- ALARM ACCEPT: N/O (positive common).
- LAMP TEST: N/O (positive common).
- FLASHER: 30 flashes per minute.
- RATED VOLTAGE: 250V.
- MECHANICAL LIFE: 10x106 cycles.
- PROTECTION INDEX IP: IP 20.
- OPERATING TEMPERATURE: -10 to + 50°C.
- STORAGE TEMPERATURE: -50 to + 85°C.
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
| Brand | Electrodev |
|---|
