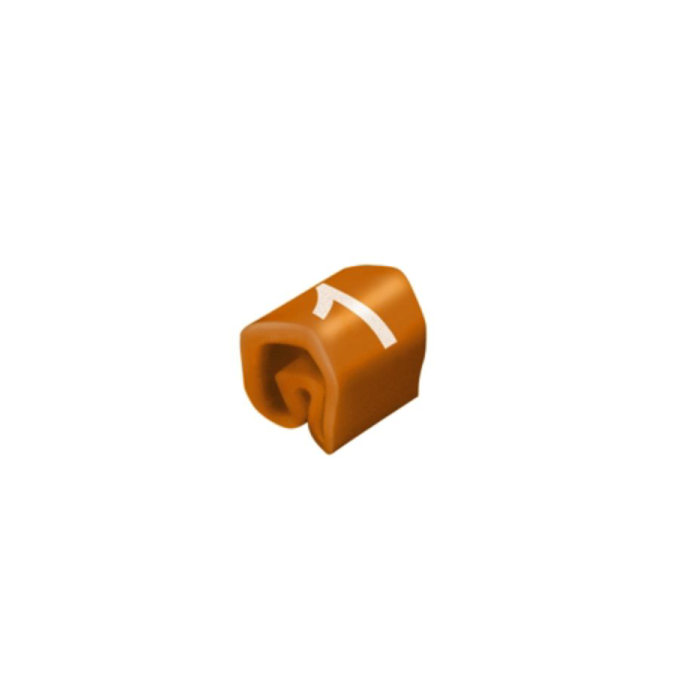

CLI C 02-3 BR/WS 1 MP
Conductor and cable markers:
- Conductor O.D.: 1.3 - 3 mm.
- Conductor O.D., max.: 3 mm.
- Conductor O.D., min.: 1.3 mm.
- Conductor cross-section, max.: 1.5 mm².
- Conductor cross-section, min.: 0.2 mm².
- Cross-section for connected wire: 0.2 – 1.5 mm².
Specifications:
- Version: Cable Line, Conductor and cable markers, brown.
- Depth: 3.5 mm.
- Height: 3 mm.
- Width: 3.4 mm.
- Operating temperature: -30...80 °C.
- Colour: brown.
- Colour of printing: white.
- Halogen
- Insulation cross-section, max.: 10.
- Material: PVC, soft, without Cadmium.
- Material colour according to resistance code: 4.
- Number of markers per combination: 1 Component part = Conductor and cable markers.
- Operating temperature range, max.: 80 °C.
- Operating temperature range, min.: -30 °C.
- Orientation of print: horizontal.
- Printed characters: Numbers.
- Printing: 1.
- Printing method: hot embossing.
- Type of printing: Standard.
- UL 94 flammability rating: V-0.
- Multi pack.
- Quantity per pack: 200.
| Brand | Weidmuller |
|---|
