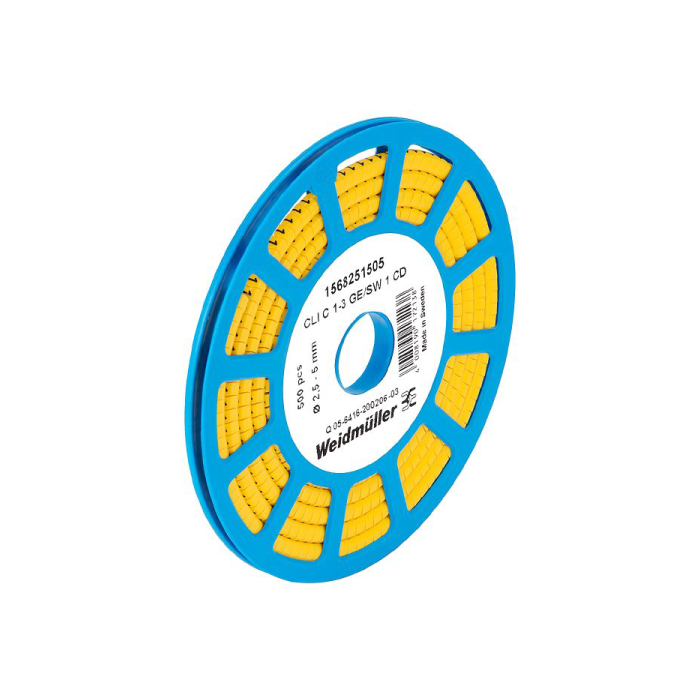

CLI C 02-3 GE/SW CD
Pricing available on request
Description:
- Mounted on unconnected conductors are CLI C conductor markings.
- For labeling conductor cross-sections ranging from 0.5 mm2 to a maximum of 70 mm2, four distinct sizes are offered.
- The markers are ready to use; they have already been printed.
- Combining the individual markers allows for individual labeling.
- Closed markers are reliable and suitable for installation on disconnected connections.
- A unique, flexible bellow profile ensures a broad application range.
- Fitting is quick and straightforward, requiring no effort.
- Labeling is made simple with matching accessories.
- Permanent and high-quality labeling.
- High contrast for optimal legibility.
Specifications:
- Version: Cable Line, Conductor and cable markers.
- Quantity: 500.
- Depth: 3.5 mm.
- Height: 3 mm.
- Width: 3.4 mm.
- Operating temperature range: -30...80 °C.
- Colour: yellow.
- Colour of printing: black.
- Halogen.
- Insulation cross-section, max.: 3.
- Material: PVC, soft, without Cadmium.
- Material colour according to resistance code: 4.
- Number of markers per combination: 1 Reel = Conductor and cable markers.
- Orientation of print: horizontal.
- Printed characters: Upper-case letters.
- Printing: Å.
- Printing method: hot embossing.
- Type of printing: Standard.
- UL 94 flammability rating: V-0.
Conductor and cable markers:
- Conductor O.D.: 1.3 - 3 mm.
- Conductor O.D., max.: 3 mm.
- Conductor O.D., min.: 1.3 mm.
- Conductor cross-section, max.: 1.5 mm².
- Conductor cross-section, min.: 0.2 mm².
- Cross-section for connected wire: 0.2 - 1.5 mm².
| SKU | 1568241055 |
|---|---|
| Brand | Weidmuller |
