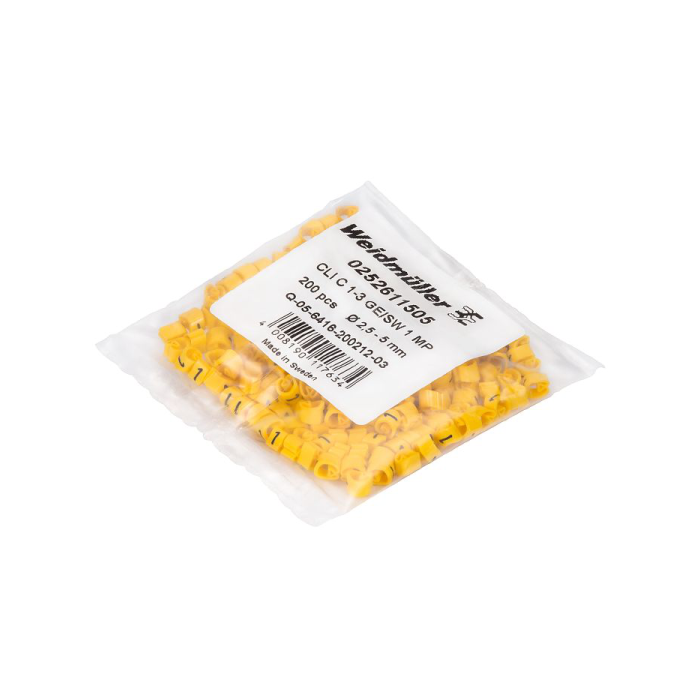

CLI C 1-3 GE/SW ET MP
CLI C 1-3 GE/SW ET MP:
- CLI C conductor markers are used to mark disconnected conductors.
- Conductor cross-sections between 0.5 mm² and a maximum of 70 mm² can be labelled in four different sizes.
- The markers are already printed and ready to use.
- Individual labelling can be achieved by combining the individual markers.
- Closed markers are reliable and can be mounted on disconnected lines.
- A unique flexible bellow profile ensures a broad application range.
- Fitting is quick and straightforward, requiring no effort.
- Labelling is made simple with matching accessories.
- Permanent, higher quality labelling.
- High contrast for optimal legibility.
Specifications dimensions and weights:
- Depth: 5 mm.
- Depth (inches): 0.197 inch.
- Height: 3 mm.
- Height (inches): 0.118 inch.
- Width: 4.2 mm.
- Width (inches): 0.165 inch.
- Net weight: 0.045 g.
Temperatures:
- Operating temperature range: -30 - 80 °C.
General data:
- Colour: Yellow.
- Colour of printing: Black.
- Halogen: Yes.
- Insulation cross-section, max.: 5.
- Material: PVC, soft, without Cadmium.
- Material colour according to resistance code: 4.
- Number of markers per combination: 1 Component part = Conductor and cable markers.
- Number of markers per packaging unit: Form of supply: Component part.
- Operating temperature range: -30 - 80 °C.
- Operating temperature range, max.: 80 °C.
- Operating temperature range, min.: -30 °C.
- Orientation of print: horizontal.
- Printed characters: Symbols.
- Printing: ET.
- Printing method: hot embossing.
- Recommended industries: Process, Machinery.
- Type of printing: Standard.
- UL 94 flammability rating: V-0.
- Version: Multipack.
- Width: 4.2 mm.
Conductor and cable markers:
- Conductor cross-section, max.: 4 mm².
- Conductor cross-section, min.: 1.5 mm².
- Conductor O.D.: 2.5 - 5 mm.
- Conductor O.D., max.: 5 mm.
- Conductor O.D., min.: 2.5 mm.
- Cross-section for connected wire: 1.5 - 4 mm².
- Halogen: Yes.
| Brand | Weidmuller |
|---|
