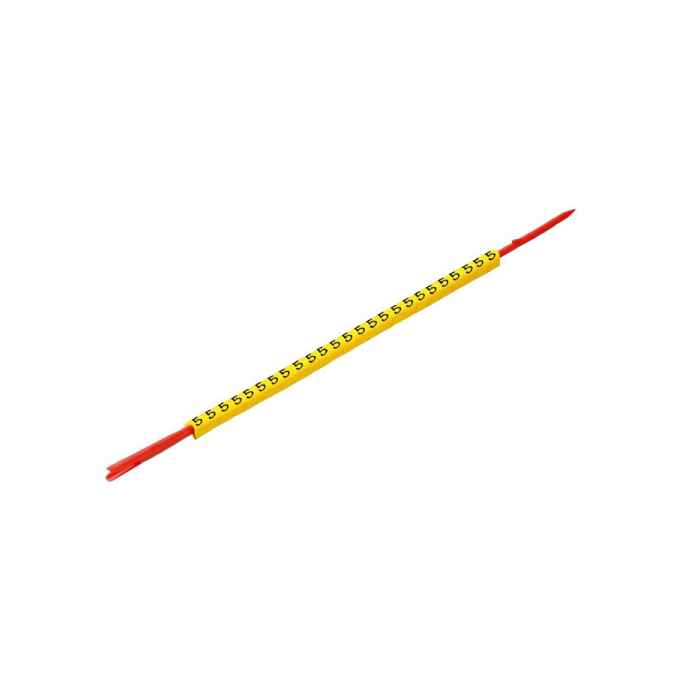

CLI R 02-3 GE/SW X

ZAR 0.00
Out of stock
SKU
0560001693

Conductor and cable markers:

  • Conductor O.D.: 1.3 – 3 mm.
  • Conductor O.D., max.: 3 mm.
  • Conductor O.D., min.: 1.3 mm.
  • Conductor cross-section, max.: 1.5 mm².
  • Conductor cross-section, min.: 0.2 mm².
  • Cross-section for connected wire: 0.2 – 1.5 mm².

Specifications:

  • Version: Cable Line, Mounting mandrel.
  • Depth: 4 mm.
  • Height: 3 mm.
  • Width: 3.4 mm.
  • Operating temperature: -30...80 °C.
  • Colour: yellow.
  • Colour of printing: black.
  • Halogen.
  • Material: PVC, soft, without Cadmium.
  • Material colour according to resistance code: 4.
  • Number per mandrel: 25.
  • Operating temperature range, max.: 80 °C.
  • Operating temperature range, min.: -30 °C.
  • Orientation of print: horizontal.
  • Printed characters: Upper-case letters.
  • Printing: X.
  • Printing method: hot embossing.
  • Type of printing: Standard.
  • UL 94 flammability rating: V-0.
  • Multipack.
  • Quantity: 10
More Information
Brand Weidmuller
