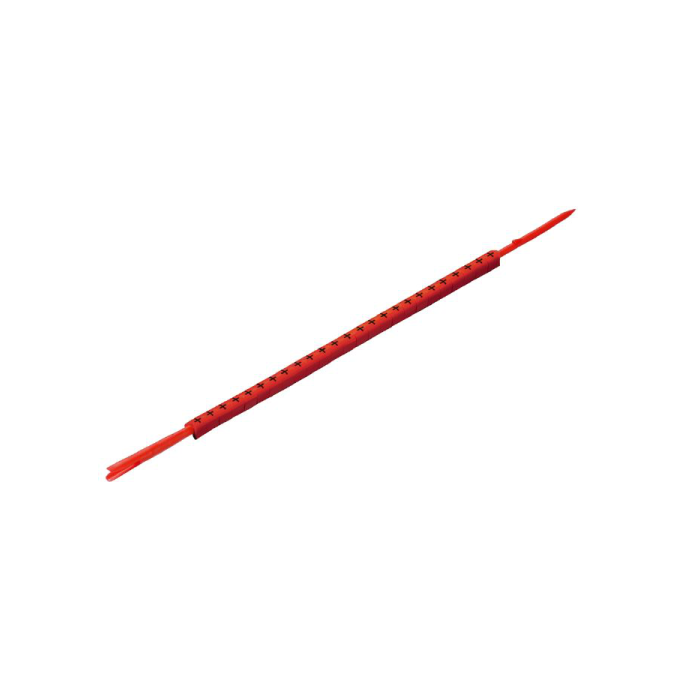

CLI R 02-3 RT/SW +
CLI R 02-3 RT/WS +:
- The Cable Line series of wire and cable marking items offers users solutions for a wide range of applications.
- The range of applications extends from narrow wires right up to cables with large outside diameters.
Specifications dimensions and weights:
- Depth: 4 mm.
- Depth (inches): 0.157 inch.
- Height: 3 mm.
- Height (inches): 0.118 inch.
- Width: 3.4 mm.
- Width (inches): 0.134 inch.
- Net weight: 1.2 g.
Temperatures:
- Operating temperature range: -30 - 80 °C.
General data:
- Colour: Red.
- Colour of printing: White.
- Halogen: Yes.
- Material: PVC, soft, without Cadmium.
- Material colour according to resistance code: 2.
- Number per mandrel: 25.
- Operating temperature range: -30 - 80 °C.
- Operating temperature range, max.: 80 °C.
- Operating temperature range, min.: -30 °C.
- Orientation of print: horizontal.
- Printed characters: Symbols.
- Printing: +.
- Printing method: hot embossing.
- Recommended industries: Process, Machinery.
- Type of printing: Standard.
- UL 94 flammability rating: V-0.
- Version: Multipack.
- Width: 3.4 mm.
Conductor and cable markers:
- Conductor cross-section, max.: 1.5 mm².
- Conductor cross-section, min.: 0.2 mm².
- Conductor O.D.: 1.3 -3 mm.
- Conductor O.D., max.: 3 mm.
- Conductor O.D., min.: 1.3 mm.
- Cross-section for connected wire: 0.2 - 1.5 mm².
- Halogen: Yes.
Brand | Weidmuller |
---|
