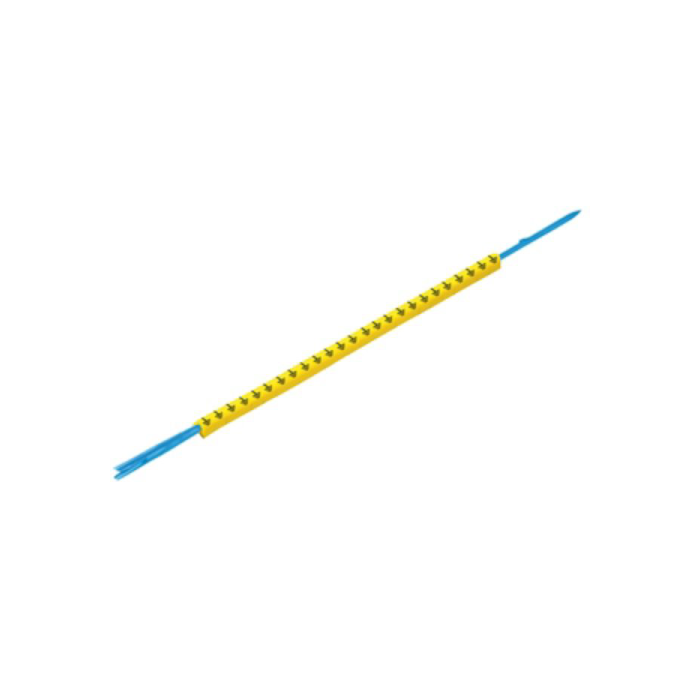

CLI R 1-3 GE/SW 5
CLI R 1-3 GE/SW 5:
- The Cable Line series of wire and cable marking items offers users solutions for a wide range of applications.
- The range of applications extends from narrow wires right up to cables with large outside diameters.
Specifications dimensions and weights:
- Depth: 5 mm.
- Depth (inches): 0.197 inch.
- Height: 3 mm.
- Height (inches): 0.118 inch.
- Width: 4.2 mm.
- Width (inches): 0.165 inch.
- Net weight: 2.3 g.
Temperatures:
- Operating temperature range: -30 - 80 °C.
General data:
- Colour: Yellow.
- Colour of printing: Black.
- Halogen: Yes.
- Material: PVC, soft, without Cadmium.
- Material colour according to resistance code: 4.
- Number per mandrel: 25.
- Operating temperature range: -30 - 80 °C.
- Operating temperature range, max.: 80 °C.
- Operating temperature range, min.: -30 °C.
- Orientation of print: horizontal.
- Printed characters: Numbers.
- Printing: 5.
- Printing method: hot embossing.
- Recommended industries: Process, Machinery.
- Type of printing: Standard.
- UL 94 flammability rating: V-0.
- Version: Multipack.
- Width: 4.2 mm.
Conductor and cable markers:
- Conductor cross-section, max.: 4 mm².
- Conductor cross-section, min.: 1.5 mm².
- Conductor O.D.: 2.5 - 5 mm.
- Conductor O.D., max.: 5 mm.
- Conductor O.D., min.: 2.5 mm.
- Cross-section for connected wire: 1.5 - 4 mm².
- Halogen: Yes.
| Brand | Weidmuller |
|---|
