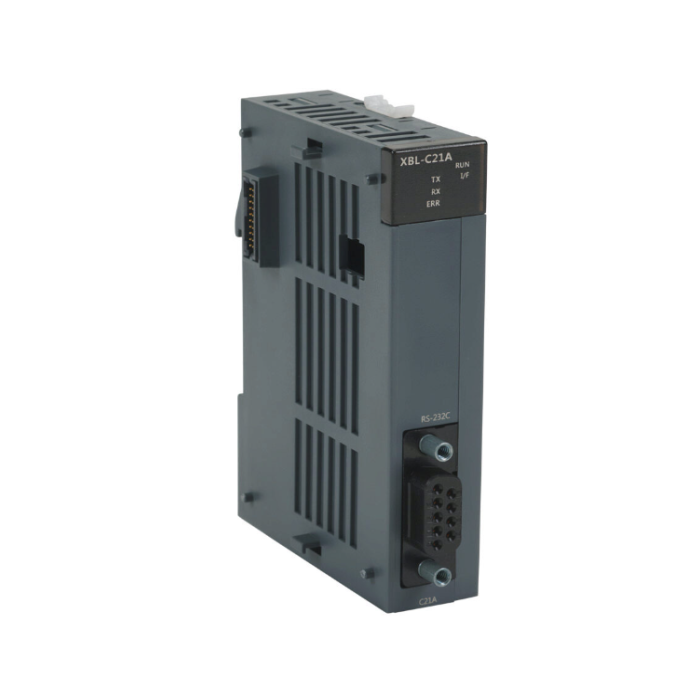

Cnet (RS-232C) I/F [modem communication]
Features:
- COMMUNICATION CARDS for XEC / XEM PLCs
- Maximize automation at the lowest cost with the following available communication expansion modules: Profibus-DP (Master/Slave), Device Net (Slave), CAN open (Master/Slave), RS-422/485, RS-232C, Ethernet I/F, and Ethernet I/P
- Modular Snap-on Design for Adaptable Installation
- Extra Features for Difficult Assignments Electric Agency Approvals: UL, cUL, CE
Specifications:
- Internal Current Consumption: 120mA
- Serial Communication Channel: RS-232C 1 Channel
- Modem Function: Remote Connection via External Modem
- Synchronization Type: Asynchronous
- Station Number Setting: Setting Range: 0 - 255 (Maximum 32 Stations)
- Maximum Transmission Distance: 49.22 Feet (15 meters)
- Diagnosis Function: Available By LED and XG5000 Diagnosis Service
- Current Consumption(mA): 100
- Weight(g): 60
| Brand | LS Electric |
|---|
