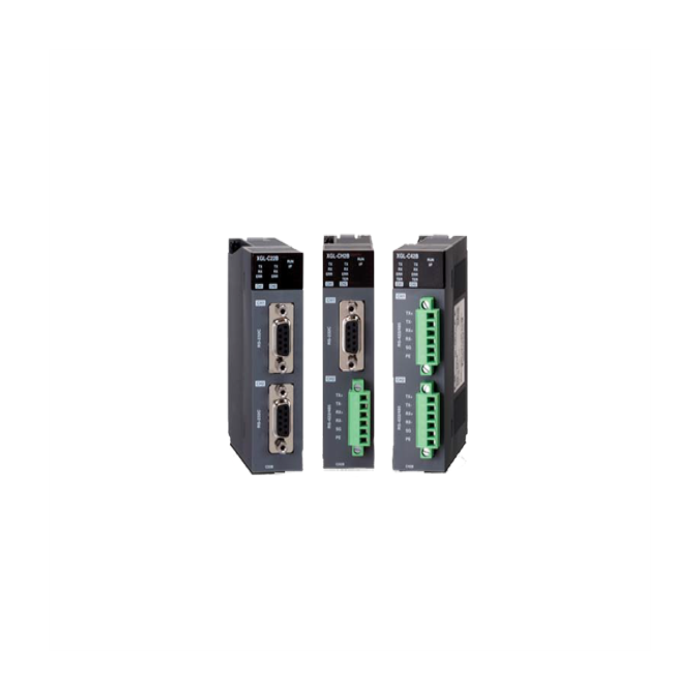

XGT Computer Link Communication Module, 1 Channel, Conforms to RS-232C Standard
Description:
- The protocol (XGT dedicated communication or Modbus RTU/ASCII) is instantly recognized by the smart server, which then functions.
- Repeater mode can be used to convert RS-232C to RS422/485 or to operate as an isolated repeater.
- Includes an integrated termination resistor that is programmable via the basic parameter window.
- XG5000 offers simple protocol customization and communication parameter configuration.
- Long-distance communication using a contemporary network.
- Specific protocol for up to 32 units to be connected in a multi-drop arrangement.
- Port for communication: RS-232C/422.
- Adaptable 300–115,200 bps communication speed setting enabling both half-duplex and full-duplex communication.
- There can be up to 12 modules on a single CPU.
- P2P services include XGT/Modbus master and user-defined communication.
- Different connections to MMI S/W (Modbus ASCII, Modbus RTU, and XGT)
- Information about communication services (P2P, dedicated)
- Supporting a dedicated service on a distant connection concurrently.
- Interaction without extra configuration while switching out the communication module.
Specifications:
- Serial communication channel: RS-232C: 1 Channel, Line configuration: 1:1, RS-422/485: 1Channel, line configuration: 1:1
- Modem connection function: Remote communication with external devices is available via public telephone line by connecting external modem to the module.
- Operating mode: P2P: XGT client, Modbus ASCII/RTU client, use defined communication.
- Server: XGT server, Modbus ASCII/RTU server.
- Data type: start Bit: 1, Data Bit: 7 or 8, Stop Bit: 1 or 2, Parity: Even/odd/none
- Synchronization type: Asynchronous type
- Setting Range: 0-31, Max. station no. 32 stations
- Transmission distance(m): RS-232C: Max. 15 (extendible if modem used)
- Diagnosis function: Status LED diagnosis XG5000 diagnosis service
- Appearance size(mm): 98(H) x 27(W) x 90(D)
- Current consumption (Ma): 480
- Communication interface (transmission standard): RS-232
- Connection terminal: connector
- Number of ports: 2
- XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK, CNet Modules
Various independent operation mode:
- Operation mode.
- Dedicated protocol mode (Simultaneous support)
- Program upload/download by XG5000 protocol (RS-232C)
- Communication using LSIS dedicated protocol.
- User-defined communication of P2P mode and XGT/ Modbus master.
| Brand | LS Electric |
|---|
