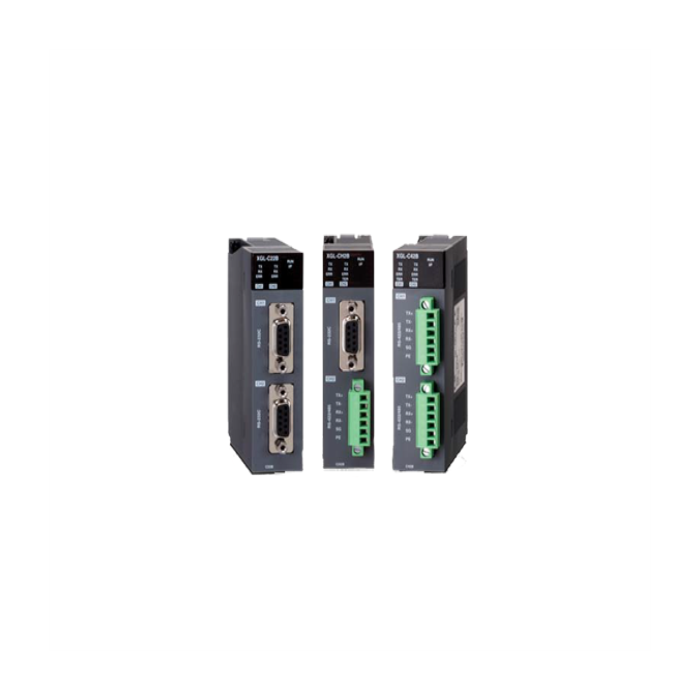

XGT Network Module, Computer-Link, RS-422/485, 2 channels
Features:
- The protocol (XGT dedicated communication or Modbus RTU/ASCII) is instantly recognized by the smart server, which then activates.
- Repeater mode can be used to convert RS-232C to RS422/485, or it can be used as an isolated repeater.
- Can be adjusted within the basic parameter window and has an integrated termination resistor.
- Simple communication parameter configuration and protocol editing: XG5000.
- Communication over long distances via a modem connection.
- Specific protocol for up to 32 units to be connected in a multi-drop arrangement.
- Communication speed can be adjusted between 300 and 115,200 bps.
- Both half-duplex and full-duplex communication are supported.
- There can be up to 12 modules on a single CPU.
- Modbus ASCII, Modbus RTU, and XGT are some of the connections to MMI S/W.
- XG5000 is used for a variety of diagnostic tasks (I/O, link status, service status).
- Supports dedicated service in a distant connection at the same time.
Specifications:
- Serial communication channel:
- RS-422/485: 2 channels, Conforms to RS-422/485 standards.
- Line config: 1:1, 1: n, n:1.
- Operating mode (specified per port):
- P2P: XGT client, Modbus ASCII/RTU client, Use defined communication.
- SERVER: XGT server, Modbus ASCII/RTU server.
- Data type:
- Start Bit: 1.
- Data Bit: 7 or 8.
- Stop Bit: 1 or 2.
- Parity: Even/Odd/None.
- Synchronization type: Asynchronous type.
- Detecting error: BYTE SUM, WORD SUM, BYTE XOR, DLE AB, DLE SIEMENS, LSIS CRC, CRC 16, BYTE SUM 2’ COMP, BYTE SUM 1’s COMP 7BIT SUM, 7BIT XOR, CRC 16 IBM, CRC 16 CCITT.
- Transmission speed (bps): 300 / 600 / 1,200 / 1,800 / 2,400 / 3,600 / 4,800 / 7,200 / 9,600/19,200 / 38,400 / 57,600 / 64,000 / 76,800 / 115,200bps.
- Station No. setting:
- Setting range: 0-31, Max.
- Station No.: 32 stations.
- Transmission Distance(m): RS-422/485: Max. 1,200m.
- Diagnosis function: Status LED diagnosis XG5000 diagnosis service (Frame monitor, Status by service, Loop-Back diagnosis) History, Saving history.
- Appearance size(mm): 98(H) X 27(W) X 90(D).
- Current consumption(mA): 520.
- Weight(g): 116.
