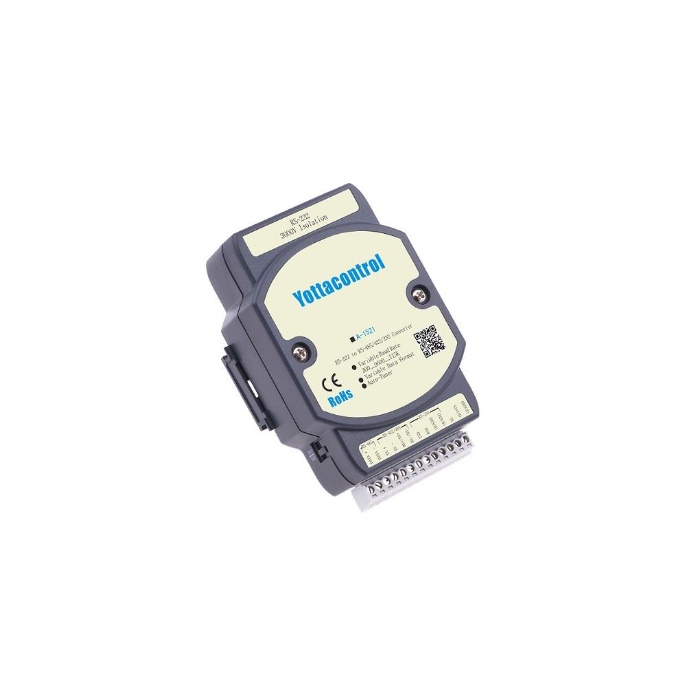

Converter, RS-232 to RS-485/422/232
A-15x series converter:
- Auto Tuner baud rate, 300~115200 bps
- 3000 VDC isolation protection
- ESD protection
- Power Inputs + 10~ +30 VDC (RS-232 type)
- No external power supply (USB type)
- Fully compliant with USB 1.1/2.0
- DIN-Rail or wall mounting
- Driver support Windows 98/ME/2000/XP/Window7/WinCE/Mac/Vista/Linux/Windows Server 2008 R2/Android
Specifications:
- Interface: RS-232 to RS-485/422/232
- Speed: Auto Tuner baud rate, 300~115200 bps
- Transfer distance: max. 1,200 m for speed 9.6 K bps, max. 400 m for speed 115.2 K bps
- Support max device: maximum of 256 devices (without repeater)
- ESD Protection: Yes
- Supply Voltage: 10~30 VDC.
- Power consumption: Nearly 24 V/0.5W
- Operation temperature: -20°C to +75°C
- Storage temperature: -25°C to +80°C
- Installation: DIN-Rail or wall mounting
- Connection: DB9 (Female to RS-232)/USB (Type B); Removable 13-pin Terminal Block (For RS-422/485/232)
| Brand | Yottacontrol |
|---|
