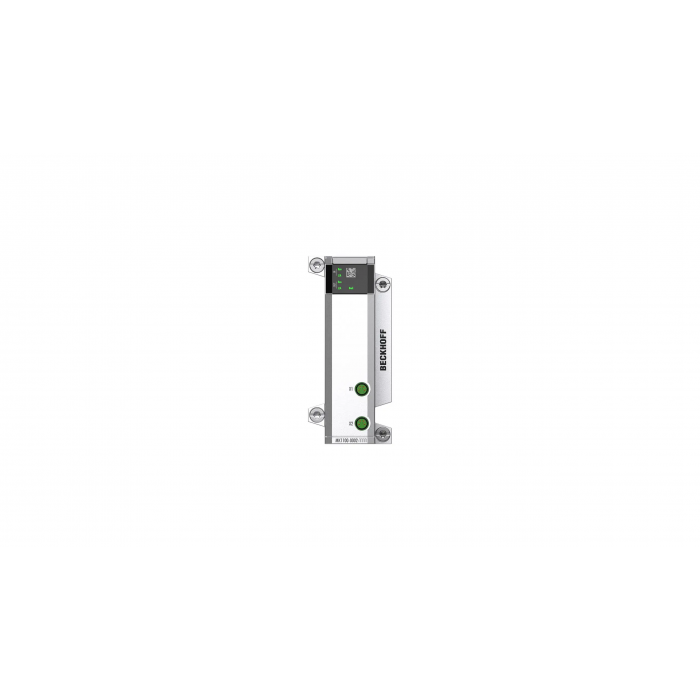

coupler module MK1100-0002-1111
The MK1100-0002-1111 coupler module enables the MX-System to be integrated into external EtherCAT control architectures. The coupler has one input and one output port. This enables topologies in which several MX-System stations can be distributed or used as an EtherCAT segment in a higher-level network.
Product category: coupler modules
Type: EtherCAT
Connection method: M8
Devices: up to 65,535 devices in one network
Supply voltage from backplane: 24 V DC
Distance between stations: max. 100 m (100BASE-TX)
Data transfer rates: 100 Mbit/s
Baseplate interface: data connector
Diagnostics: yes
Hot swap: yes
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 30 mm × 110 mm × 72 mm
Number of rows: 1
Number of slots: 1
Material: zinc and aluminum die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
| SKU | MK1100-0002-1111 |
|---|
