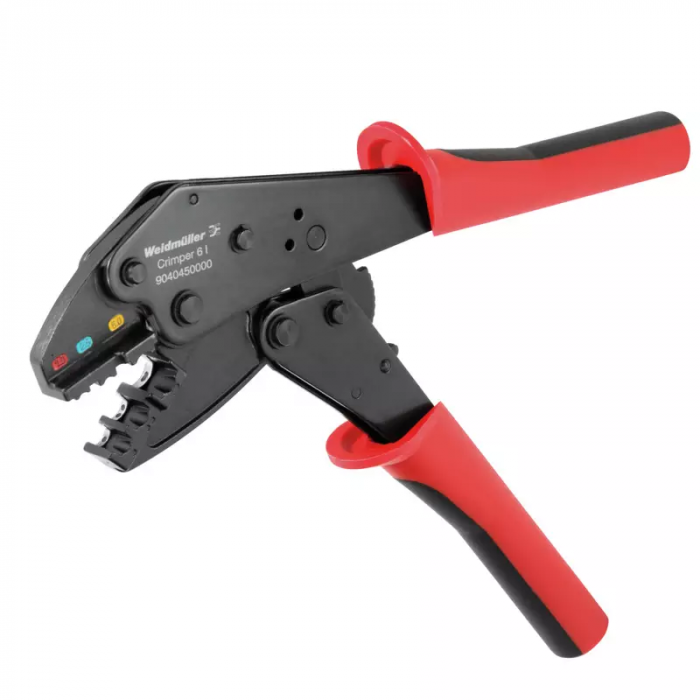

CRIMPER 6 I
Pricing available on request
Description:
- Crimping tools include shielded connections, cable lugs, terminal pins, parallel and serial connectors, and plug-in connectors.
- Ratchet ensures exact crimping.
- In the event of an improper operation, select the Release option.
- Stop allows for precise contact positioning.
- Tested according to DIN EN 60352 part 2.
Specifications:
- Dimensions and weights:
- Width: 200mm.
- Net weight: 504.57 g.
- Description of article: Crimping tool for insulated connectors, 0.5-6 mm².
- Version: Mechanical, without interchangeable inserts.
- Description of contact:
- Type of contact: Insulated connector.
- Conductor cross-section, max. AWG: AWG 10.
- Conductor cross-section, min. AWG: AWG 24.
- Crimping range, max.: 6 mm².
- Crimping range, min.: 0.25 mm².
- Tool Data Crimping:
- Wire end ferrules cross-section, max.: 6 mm².
- Wire end ferrules cross-section, min.: 0.25 mm².
- Crimping type/profile: Trapezoidal crimp.
| SKU | 9040450000 |
|---|---|
| Brand | Weidmuller |
