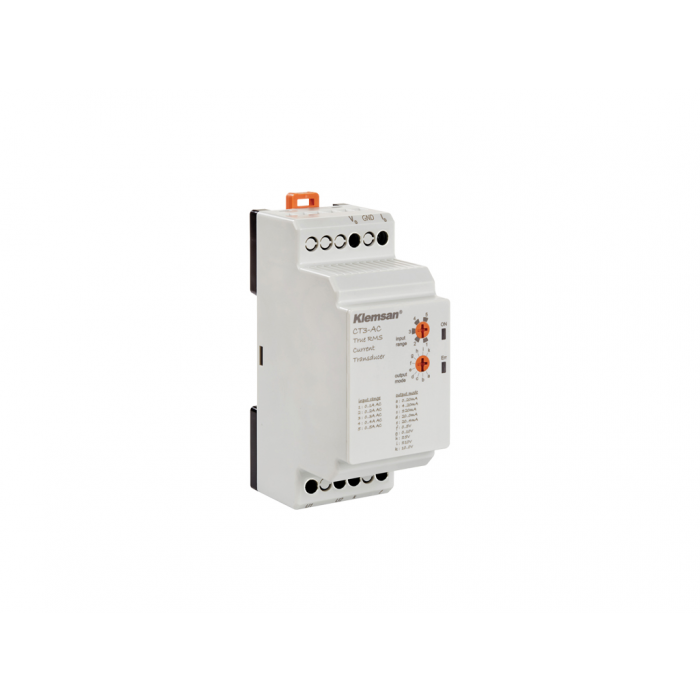

CT3 CURRENT TRANSDUCER 85-265VAC
Specifications:
- CT3 TRMS current transducer
- Casing Width (mm): 36
- Connections: Screw terminal
- Isolation: 1.5 kVrms, 3-way
- Test Voltage between Input-Output: 4 kV during 1 min.
- Linearity: <0.2%
- Response Time: 350ms
- Ripple: <80mV
- Accuracy: <0.2% (full scale, 25°C)
- Temperature Coefficient: 150 ppm/°C
- Protection class: IP20
- Mounting type: panel or rail
Input Signal:
- Frequency: 40-70 Hz
- Surge Overload: 20xin (100 A) for 1 sec.
- Constant Overload: 10A (2x Rated IN)
- Input Impedances: 49.9 Ω (burden resistor)
Supply voltage:
- AC: 85-265V
- DC: 85-265V
Supply:
- Frequency: 40-70Hz
Power Consumption:
- DC: <1.5W
- AC: <4VA
Ambient Conditions:
- Operating Temperature: -20°C +60°C
- Storing Temperature: -40°C +75°C
- Relative Humidity (No Condensation): Maks. 95%
| Brand | Klemsan |
|---|
