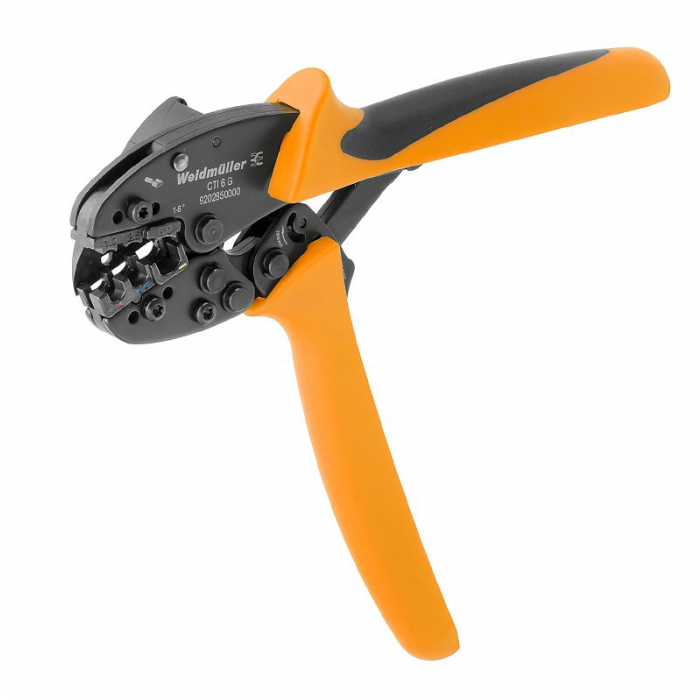

CTI 6 G
Crimping Tools for Insulated Connectors:
- Connector types include cable lugs, terminal pins, parallel and serial connectors, and plug-in connectors.
- Ratchet ensures exact crimping.
- In the event of an improper operation, select the Release option.
- Stop allows for precise contact positioning.
- DIN EN 60352 part 2 compliance testing.
- Crimping tools for contacts are available in 0.5mm², 6mm², oval, and Parallel crimp.
Specifications dimensions and weights:
- Width: 250 mm.
- Width (inches): 9.842 inch.
- Net weight: 689.78 g.
Environmental Product Compliance:
- REACH SVHC: Lead 7439-92-1.
- SCIP: 2159813b-98fd-4068-b62a-bc89a046c012.
Technical data:
- Description of article: Crimping tool for insulated connectors, 0.5-6 mm².
- Version: Mechanical, without interchangeable inserts.
Description of contact:
- Conductor cross-section, max. AWG: AWG 10.
- Conductor cross-section, min. AWG: AWG 21.
- Crimping range, max.: 6 mm².
- Crimping range, min.: 0.5 mm².
- Type of contact: Insulated connector.
Tool data crimping:
- Crimping station:
- Crimping station number: 1.
- Conductor cross-section, min.: 0.5 mm².
- Conductor cross-section, max.: 1.5 mm².
- Conductor cross-section AWG, min.: 20 AWG.
- Conductor cross-section AWG, max.: 16 AWG.
- Colour of crimping station: Red.
- Crimping station number: 2.
- Conductor cross-section, min.: 1.5 mm².
- Conductor cross-section, max.: 2.5 mm².
- Conductor cross-section AWG, min.: 16 AWG.
- Conductor cross-section AWG, max.: 14 AWG.
- Colour of crimping station: Blue.
- Crimping station number: 3.
- Conductor cross-section, min.: 4 mm².
- Conductor cross-section, max.: 6 mm².
- Conductor cross-section AWG, min.: 12 AWG.
- Conductor cross-section AWG, max.: 10 AWG.
- Colour of crimping station: Yellow.
- Crimping type/profile: Oval crimping, Parallel crimp.
| Brand | Weidmuller |
|---|
