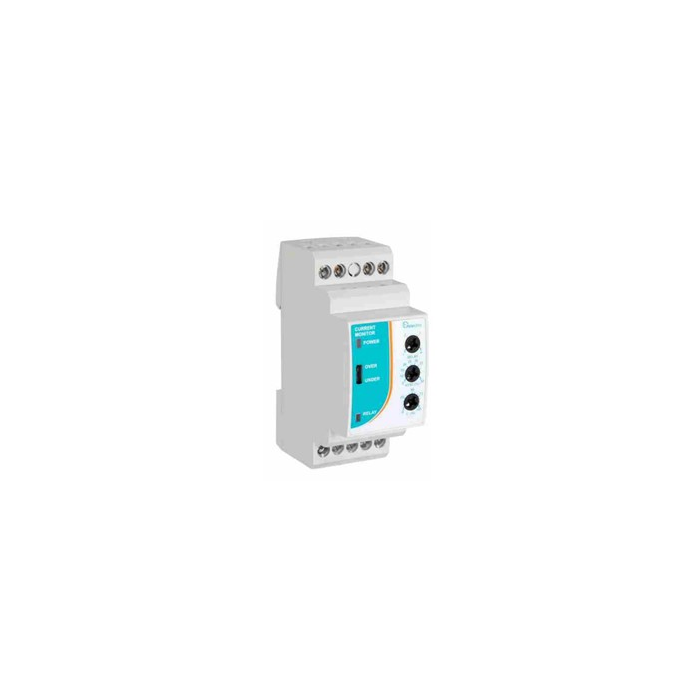

CURRENT COMPARATOR 5A CT, 230VAC
Current window comparator over and under current monitoring:
- Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
- They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
- A comparator for current between two levels, known as the current window.
- The device is perfect for all current monitoring applications because it may be purchased with a broad range of AC and DC currents.
- Front panel dials can be used to adjust over and under current.
- Unmonitored fault conditions are prevented via the latch facility.
- A fixed 5% hysteresis is used.
Features:
- Latching facility that is optional.
- Relay with 10A SPDT output.
- 4 Selectable delays at the front face.
- LED power supply indicator on.
- Mountable on a modular 35.5mm DIN rail.
- LED indication for excessive and insufficient current.
- Analog microprocessor with high resolution.
- The front face is movable above and below the current settings.
Specification:
- DESCRIPTION: Current window comparator timer (can interface with 5A current transformer)
- CONTACT: 10A SPDT
- INPUT: Pin 7 & 9
- MEASURING RANGES: 0 - 5 A
- HYSTERESIS: 5 - 50%
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
