Analog Input, 8 channels, current
Description:

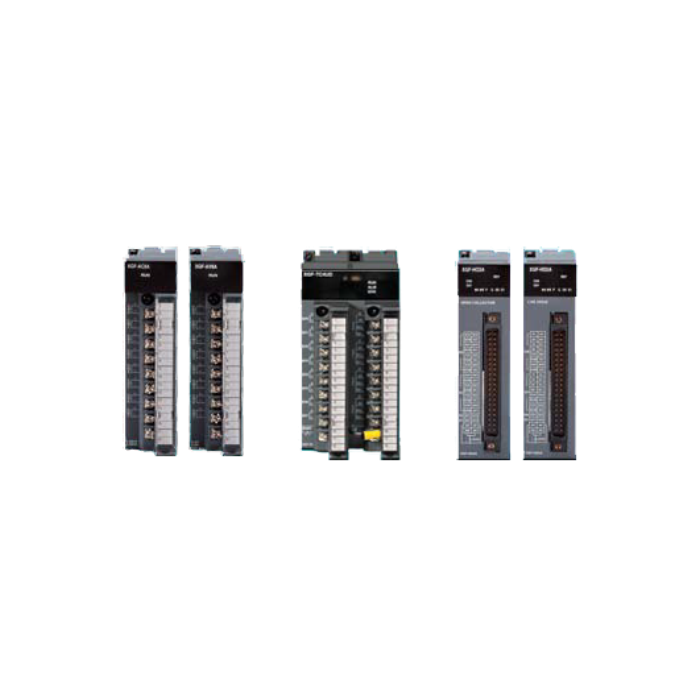

- The LS Electrical XGF-AC8A is an Analog Input Module designed for precise and reliable data acquisition in industrial automation systems.
- It features 8 analog input channels that can handle a current range of DC 0 to 20 mA, with an absolute maximum input of 30 mA.
- The module connects via an 18-point terminal and occupies 64 fixed I/O points or 16 variable I/O points.
- This makes it suitable for applications requiring accurate analog signal processing and integration into larger control systems.
- The XGF-AC8A ensures high performance and safety, adhering to stringent industrial standards.
Specifications:
- Product Category: Modular PLC (XGK)
- Product Type: Analogue Input
- No. of input channel: 8 channels
- A/D Resolution: 14Bit
- Total Number of I/O: 18
- Analogue input: DC 4~20mA, 0~20mA
- Conversion speed: 250㎲/channel
- Max. absolute input: ±30mA
- Connection terminal: 18 points
- Current consumption: 420mA
- Weight (Kg): 0.14
- Insulation method: Photo-Coupler insulation between input terminal and power supply (no insulation between channels)
- XGT LS High Performance, Rack-Type PLC, XGI / XGR / XGK
- Analogue Input Modules
| Brand | LS Electric |
|---|
