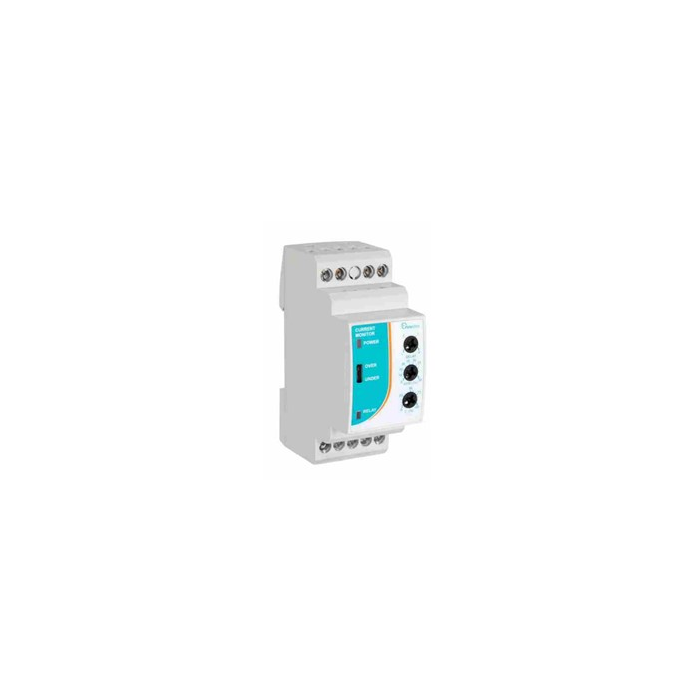

CURRENT MONITOR MAXIMUM 15A DIRECT 230VAC
Current Monitor:
- Compact modular modules in the Electro D series of control and timing devices make it simple to integrate them into distribution boards or standard panels.
- They align with ordinary tiny circuit breakers (MCBs) and attach straight onto DIN rail.
- An accurate UNDER/OVER current monitoring relay is the DCM series.
- The device is perfect for several current monitoring applications because it may be ordered in a variety of AC and DC current ranges.
- Separate potentiometers can be used to modify the hysteresis and set point.
- Additionally, the machine has a latch feature to stop unnoticed malfunctions.
- All units come with a terminating resistor to avoid open circuit in applications that require a CT.
Features:
- Latching facility that is optional.
- Relay with 10A SPDT output.
- 4 Selectable delays at the front face.
- Current level is changeable on the front face.
- Mountable on a modular 35.5mm DIN rail.
- Adjustable hysteresis on the front face 5–50%.
- Analog microprocessor with high resolution.
- Selectable front face Above/Below observation.
- Relay and power supply ON LED indicator.
Specifications:
- DESCRIPTION: Current monitor device (direct monitor up to 15A)
- CONTACT: 10A SPDT
- DELAYS: No delay, startup delay 10 second,180 second recovery delay, reaction delay 10 second
- INPUT: Pin 7 & 9
- MEASURING RANGES: 0 - 5 A
- HYSTERESIS: 5 - 50%
- RATED VOLTAGE: 250V
- MECHANICAL LIFE: 10x106 cycles
- PROTECTION INDEX IP: IP 20
- OPERATING TEMPERATURE: -10 to + 50°C
- STORAGE TEMPERATURE: -50 to + 85°C
- DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
| Brand | Electrodev |
|---|
