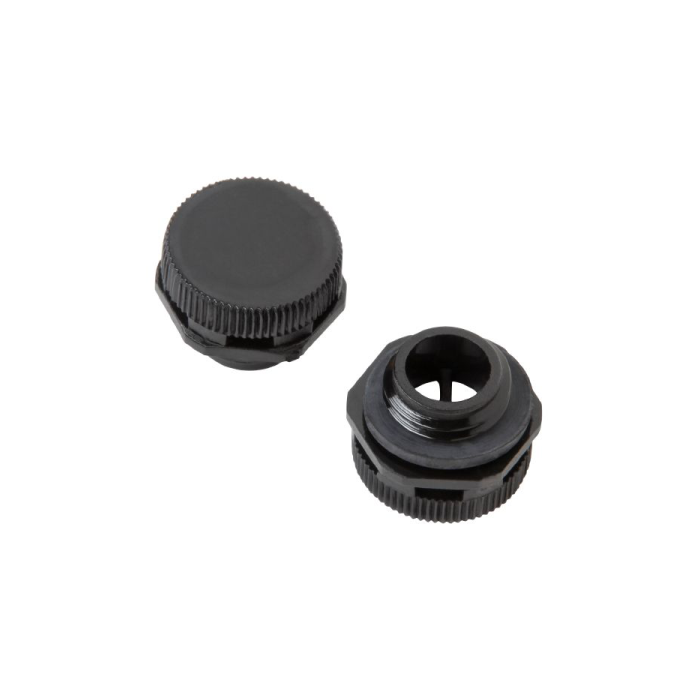

DAE M12 PA short (No Locknut)
Description:
- The DAE pressure-compensation device keeps moisture buildup at bay and gives the enclosure adequate ventilation.
- It keeps the high IP69K protection level at the same time.
- Water and oil resist the membrane.
Specifications:
- Version: DAE (ventilation element), Compensating element, straight, M 12.
- Quantity: 10.
- Height: 7.6 mm.
- Length: 13.4 mm.
- Wall thickness, min.: 0.5 mm.
- Wall thickness, max.: 6 mm.
- Operating temperature: -40 °C...105 °C.
- AF size 1: 17 mm.
- Air flow: 0.8 l/min at 0.1 bar ΔP, up to 7.6 l/min at 1bar ΔP.
- Cable glands: metric.
- External thread: M 12.
- No Halogen.
- Inside diameter D2: 12 mm.
- Length of thread: 6 mm.
- Material: Polyamide 6.
- O-Ring: NBR.
- Pitch of thread: 1.5 mm.
- Protection degree: IP66, IP68 (1 m / 60 min), IP69K.
- Protection degree with GWDR: IP66, IP68, IP69K.
- No Silicone.
- UL 94 flammability rating: V-2.
- Wasser inlet point: > 1.5 bar.
Brand | Weidmuller |
---|
