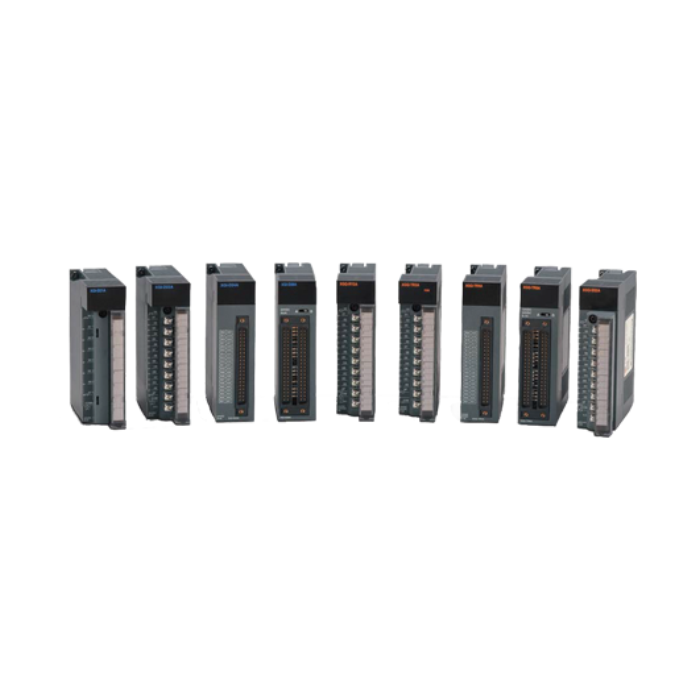

XGT Input Module, 16 Point, DC24V
Description:
- 8, 16, 32, 64 points I/O module.
- Operation monitoring by LED display.
- Easy maintenance: Terminal block type, one-touch installation of module.
Specifications:
- Input point: 16.
- Rated input voltage: DC24V.
- Rated input current: 4mA.
- ON voltage/current: 19V or more / 3mA or less.
- OFF voltage/current: DC11V or more / 1.7mA or less.
- Response:
- Off→On: 1ms/5ms/10ms/20ms/70ms (set by CPU parameter) Initial value: 3ms.
- On→Off: 1ms/5ms/10ms/20ms/70ms (set by CPU parameter) Initial value: 3ms.
- Common (COM): 16 points/COM.
- Insulation method: Photocoupler.
- Current consumption (mA): 30.
- Weight (Kg): 0.12.
| Brand | LS Electric |
|---|
