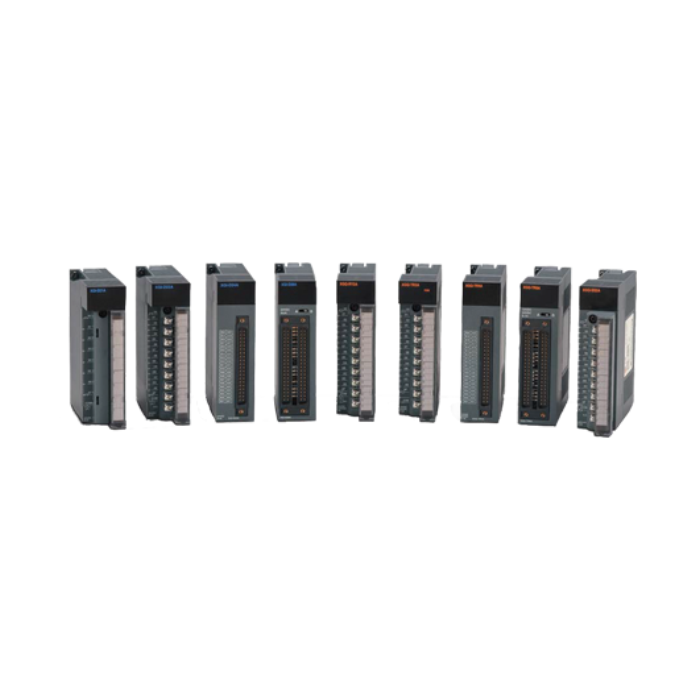

DC 24V Input 16 points (DC24V) TR.(NPN Type) Output 16 points (DC12/24V 0.1A)
Specifications:
- Common (COM): 16 points/COM
- Operation display: LED lighting when output is on
- Internal current consumption: 100mA
- External connection: 40-point connector
- Weight (kg): 0.1
- LS High Performance, Rack-Type PLC, XGI / XGR / XGK
- Hybrid Digital I/O Modules
- Input/ output mixed type
Input Specifications:
- Input points: 16 points.
- Insulation method: Photo coupler
- Rated input voltage: DC24V
- Rated input current: 4 mA
- Input voltage range: DC20.4~28.8V
- Insulation pressure: AC560Vrms/ 3 Cycle
- On Voltage Current: DC19V or more/ 3Ma or more
- OFF Voltage Current: DC11V or more/ 1.7Ma or more
- Input resistance: 5.6.
Output Specifications:
- Input points: 16 points.
- Insulation method: Photo coupler
- Rated input voltage: DC12/24V
- Rated input current: DC10.2~26.4V
- Input voltage range: 0.1A/point, 1.6A/COM.
- Insulation pressure: 0.1Ma or less
- On Voltage current: 0.7Ma or less
- OFF Voltage current: Zener diode
- Input resistance: DC 0.2V or less.
| Brand | LS Electric |
|---|
