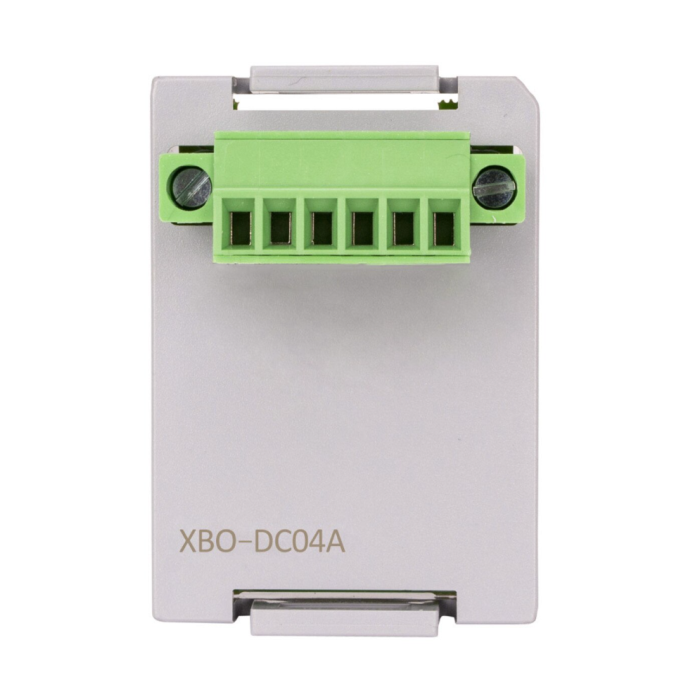

Option Board, DC IN, 4 Point, 24VDC, Sinking/Sourcing
Description:
- Extra inputs can be added to "E" and "SU" type PLCs with ease.
- Installed in "SU" type PLCs, inputs can be used for the high-speed counter function.
- When employing one phase high-speed counting, 4kpps at 4 channels Electric is achieved.
- Electric: UL / cUL / CE Agency Approved.
Specifications:
- Input Operation Voltage Range: 20.4 to 28.8VDC (Ripple Rate <5 %).
- Input Resistance: 2.7kΩ.
- Input On Voltage / On Current: 19VDC or more / 3mA or more.
- Input Voltage Off / Off Current: 6VDC or less / 1mA or less.
- Input Response Time:
- Off / On: 1/3/5/10/20/70/100ms (Setting by CPU Parameter) Initial Value: 3ms.
- On / Off: 1/3/5/10/20/70/100ms (Setting by CPU Parameter) Initial Value: 3ms.
- High Speed Counter Functions: SU Type ONLY.
- Count Mode: Linear.
- Count Input Signal:
- Signal: A-Phase, B-Phase.
- Input Type: Voltage Input (Open Collector).
- Signal Level: 24VDC.
- Maximum Count Speed: 4kpps.
- Count Range: Signed 32-bit (-2,147,483,648 to 2,147,483,647).
- Count Type: Linear Count (Carry / Borrow occurs when exceeds 32-bit range).
- Input Pulse Mode: 1-Phase Input, 2-Phase Input.
- Up / Down Setting:
- 1-Phase Input: Increasing / Decreasing Operation Setting by B-Phase Input or Increasing / Decreasing Operation Setting by Program.
- 2-Phase Input: Automatic Setting by Difference in Phase.
- Multiplication Function:
- 1-Phase Input: Multiplication.
- 2-Phase Input: Multiplication.
- Signal Type: Voltage.
- Count Enable: Set by Program.
- Preset Function: Set by Program.
| Brand | LS Electric |
|---|
