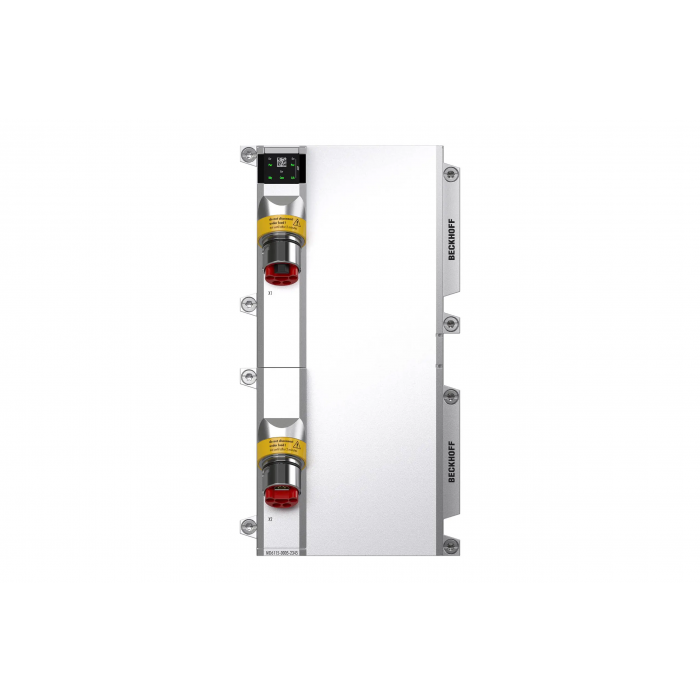

DC link power supply MD6015-0003-2345
The DC link power supply unit generates the DC link voltage for supplying the axis modules and the option modules from the mains voltage.
Product category: drive modules
Category/version: DC link power supply
Supply voltage from backplane: 400…480 V AC
Output current power connector: 15 A
Connection method: B23
Capacity: for intermediate circuit
Input filter: yes
Performance: unregulated
DC link voltage: max. 848 V DC
Baseplate interface: data and power connector
Diagnostics: yes
Distributed clocks: no
Hot swap: no
TwinCAT version: TwinCAT 3
Approvals/markings: CE, cULus, EAC
Dimensions (W x H x D): 70 mm x 240 mm x 152 mm
Number of rows: 2
Number of slots: 3
Material: zinc die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
| SKU | MD6015-0003-2345 |
|---|
