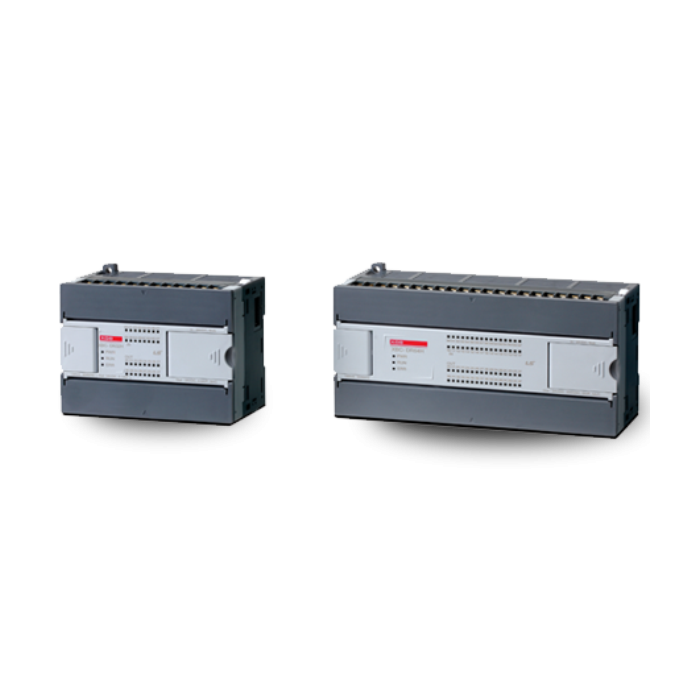

DC supply 32x 24V In 32x Rly out PS2/USB loader 1 Ch ea RS-232C and RS-485
Specifications:
- Control method: Repetitive, cyclic, interrupt, constant scan.
- I/O control method: Refresh mode (batch processing by scan synchronization), direct mode by instruction.
- Programming language: Ladder diagram or IEC standard (LD, SFC, ST)
- Processing speed: 83ns/step
- Program capacity: 15K step (IEC type: 200KB)
- Main unit I/O points: 64 (input: 32, output: 32)
- Max. I/O points: 384
- Total program: 128
- Operation mode: RUN, STOP, DEBUG
- Self-diagnosis: Detects errors of scan time, memory error, I/O error, battery error, power error, etc.
- Program port: USB (Rev. 1.1), RS-232C 1 channel (loader)
- Retain data at power failure: latch area setting at basic parameter.
- Built-in functions: RS-232C/ RS-485 (2CH), Pulse catch, input filter, external interrupt, PID control, high-speed counter, positioning, RTC
Brand | LS Electric |
---|
