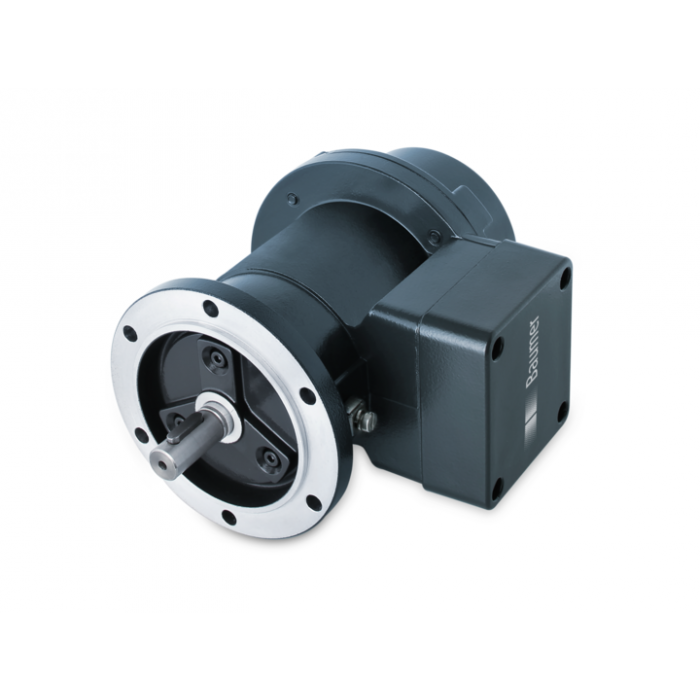

DC Tachogenerators, 150 mV per rpm
Solid shaft ø11 mm with EURO flange B10:
- ATEX/Tachogenerator.
- Ex approved by ATEX II 2 G Ex db eb IIC T6 Gb.
- Response time is low.
- Open-circuit voltage ranges from 20 to 150 mV per rpm.
- A solid ø11 mm shaft.
- EURO flange B10.
- Patented Long Life technology provides high signal quality.
- Recognition of a sense of rotation.
Technical data:
- DC voltage U0 [mV/rpm]: 150.
- At current I [mA]: Open circuit.
- Minimum load required depending on speed range [rpm]:
- 0-nmax RL [kΩ]: >16.
- Maximum operating speed nmax [rpm]: 2800.
- Armature resistance RA (20°C) [Ω]: 575.
- Armature inductance LA [mH]: 2420.
| SKU | EExGP0.2L-1 |
|---|---|
| Brand | Baumer Thalheim |
