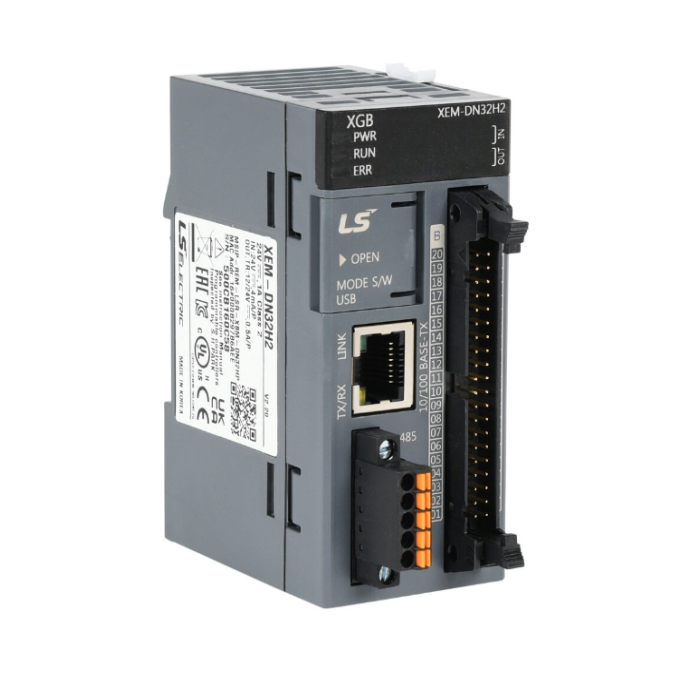

XEM Slim Type DC24 PSU 16 x Inputs 16 x NPN (Sink) Outputs Built-in 2-Axis Posit Function
Description:
- A flexible line of slim type programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBM/XEM Type series.
- Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
- While the XEM models include transistor outputs to meet a range of control requirements, the XBM models usually concentrate on relay outputs.
- Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
- These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.
Specifications:
- Program control method: Cyclic execution of stored program, Time-driven interrupt, process-driven interrupt.
- I/O control method: Batch processing by simultaneous scan (Refresh method), Directed by program instruction.
- Program language: LD (ladder diagram), instruction list, SFC (Sequential function chart) ST (Structured text)
- Operator: 18
- Basic function: 136+ real number operation function
- Basic function block: 43
- Dedicated function block: special function dedicated function
- Processing speed (basic instruction): 40ns/step
- Program capacity: 384KB.
- Max. I/O points: 256 points (Main + expansion 7 stages)
- Automatic variable (A): 64KB (All area retains setting available)
- Input variable (I): 2KB.
- Output variable (Q): 2KB.
- Direct variable: M: 32KB (all area retains setting available), R: 32KB (2 block), W: 64KB.
- Flag variable: F: 4KB, K: 8KB, L: 8KB, U: 576KB.
- Total program: 256
- Initial task: 1, cyclic task: Max. 16, I/O task: Max. 8, Internal device task: Max. 16, High-speed counter task: Max. 4, Positioning task: 1
- Operation mode: RUN, STOP, DEBUG
- Self-diagnosis function: detects errors of scan time, memory, I/O and power supply.
- Program port: USB 1 channel.
- Back up method: Latch area setting in basic parameter.
- Internal consumption current: 540mA
| Brand | LS Electric |
|---|
