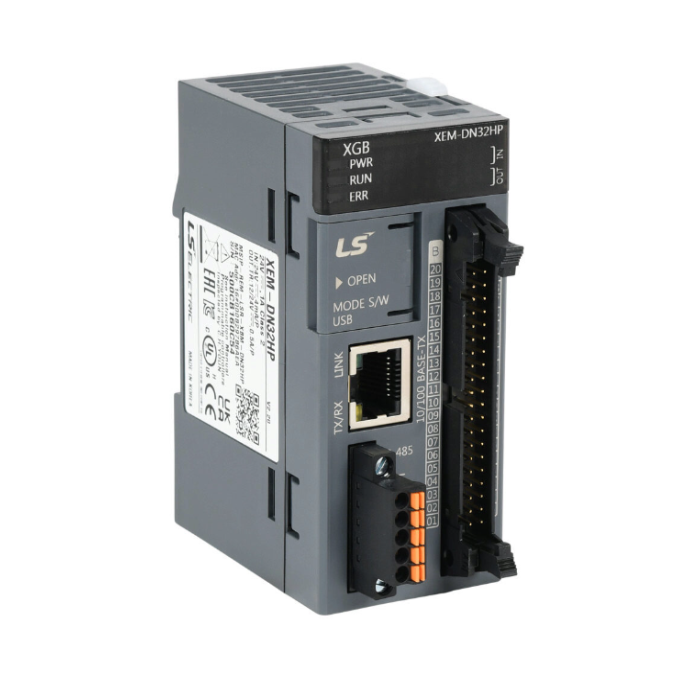

XEM Slim Type DC24 PSU 16 x Inputs16 x NPN (Sink) Outputs Built-in 6-Axis Posit Function

ZAR 0.00
Out of stock
SKU
XEM-DN32HP

Description:

  • A flexible line of slim type programmable logic controllers (PLCs) intended for industrial automation applications is the LS Electrical XBM/XEM Type series.
  • Together with features like modular architecture, simple installation, and a variety of configuration possibilities, these controllers provide strong performance and dependability.
  • While the XEM models include transistor outputs to meet a range of control requirements, the XBM models usually concentrate on relay outputs.
  • Both series are compatible with many field devices and systems because they support a large variety of input and output combinations.
  • These PLCs offer effective control and monitoring solutions for industrial processes and are appropriate for tough situations thanks to their DC 24V operating voltage.

Specifications:

  • Program control method: Cyclic execution of stored program, Time-driven interrupt, process-driven interrupt.
  • I/O control method: Batch processing by simultaneous scan (Refresh method), Directed by program instruction.
  • Program language: LD (ladder diagram), instruction list, SFC (Sequential function chart) ST (Structured text)
  • Operator: 18
  • Basic function: 136+ real number operation function
  • Basic function block: 43
  • Dedicated function block: special function dedicated function
  • Processing speed (basic instruction): 40ns/step
  • Program capacity: 384KB.
  • Max. I/O points: 256 points (Main + expansion 7 stages)
  • Automatic variable (A): 64KB (All area retains setting available)
  • Input variable (I): 2KB.
  • Output variable (Q): 2KB.
  • Direct variable: M: 32KB (all area retains setting available), R: 32KB (2 block), W: 64KB.
  • Flag variable: F: 4KB, K: 8KB, L: 8KB, U: 576KB.
  • Total program: 256
  • Initial task: 1, cyclic task: Max. 16, I/O task: Max. 8, Internal device task: Max. 16, High-speed
  • counter task: Max. 4, Positioning task: 1
  • Operation mode: RUN, STOP, DEBUG
  • Self-diagnosis function: detects errors of scan time, memory, I/O and power supply.
  • Program port: USB 1 channel.
  • Back up method: Latch area setting in basic parameter.
  • Internal consumption current: 540mA
More Information
Brand LS Electric
