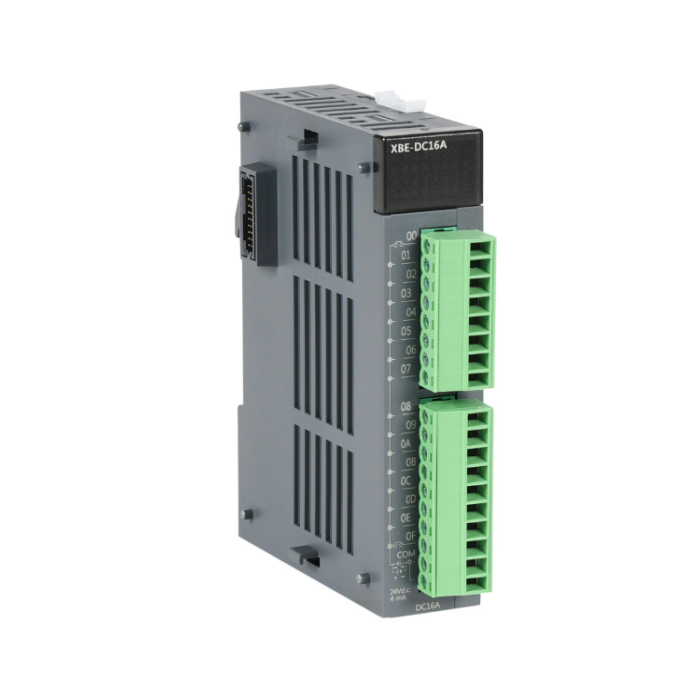

DC24V input 16 points sink/source 2 x Plug-in Screw-Terminal connections
Features:
- Extended digital and analog I/O from the XGB series is compatible with the PLC system of the extended smart I/O adapter XEL-BSSRx.
- Modbus TCP/IP, RAPIEnet, and other Net/IP protocols are supported.
- Support the maximum media speed of IGbps for mixed, optical, and electric modules.
- Support for port media for all electric, optical, and mixed modules; ability to configure line and ring technologies via the relay function, eliminating the need for extra switches.
- When increasing the ring structure, one line can be operated without making any mistakes.
- Provide diagnostics for the service status.
Specifications:
- Input point: 16 points.
- Rated input voltage / current: DC 24V / 4mA
- Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate < 5%)
- Insulation pressure: AC 560Vrms / 3 Cycle (altitude 2000m)
- Insulation resistance: 10MΩor more by megger
- Common method: 16 points / COM
- Internal current consumption: 40mA
- DIGITAL EXPANSION I/O for XEC XEM PLCs
Brand | LS Electric |
---|
