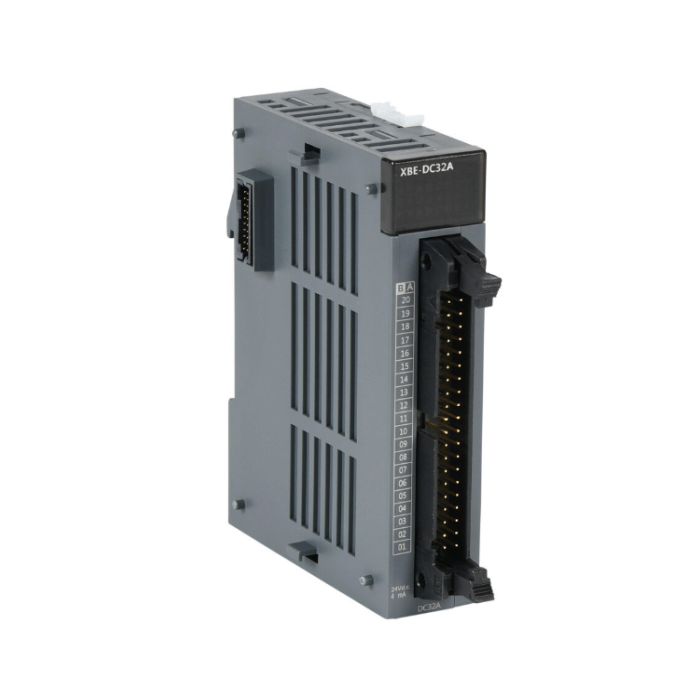

Expantion I/O Module 32 pts DC 24V input
Description:
- For industrial automation systems, LS Electric's XGB discrete input module (XBE-DC32A) is a flexible part.
- It has sixteen input points that can accommodate both sourcing and sinking configurations and run at 24 VDC.
- To provide effective and well-organized wiring, the module is built with one common for every 16 points. It also has detachable terminal blocks for simple upkeep and installation.
- Applications needing dependable and adaptable input handling in PLC systems are best suited for this module.
Specifications:
- Input point: 32 points.
- Rated input voltage / current: DC 24V / 4mA
- Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate < 5%)
- Common method: 32 points / COM
- Internal current consumption: 50mA
- Input Resistance: 5.6kΩ
- Insulation Voltage: 560VAC RMS/3 Cycle (Altitude 2000m)
- Insulation Resistance: 10MΩ
- DIGITAL EXPANSION I/O for XEC XEM PLCs
Brand | LS Electric |
---|
