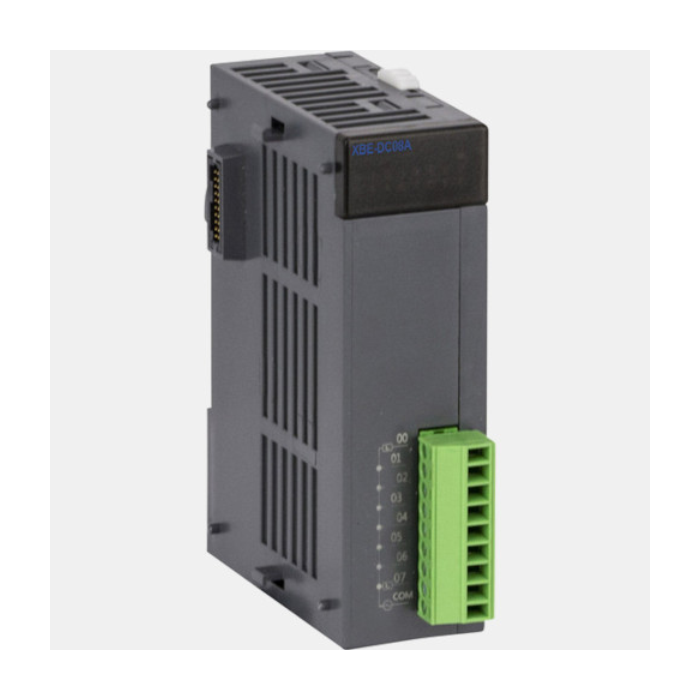

DC24V input 8 points sink/source 1 x Plug-in Screw-Terminal connection
Specifications:
- Input point: 8 points.
- Rated input voltage / current: DC 24V / 4mA
- Operation voltage range: DC 20.4 ~ 28.8V (Ripple rate < 5%)
- Insulation pressure: AC 560Vrms / 3 Cycle (altitude 2000m)
- Insulation resistance: 10MΩor more by megger
- Common method: 8 points / COM
- Internal current consumption: 30mA Category
- DIGITAL EXPANSION I/O for XEC XEM PLCs
- Current Consumption: 4mA @ 24VDC/point
- Input Resistance: 5.6kΩ
- On Voltage/On Current: 19VDC or more/2mA or More
- Off Voltage/Off Current: 6VDC or less/1mA or Less
- Response Time: Off → On 1/3/5/10/20/70/100ms (setting by CPU parameter) Initial Value: 3ms, On → Off 1/3/5/10/20/70/100ms (setting by CPU parameter) Initial Value: 3ms
- Insulation Voltage: 560VAC RMS/3 Cycle (Altitude 2000m)
Brand | LS Electric |
---|
